T-handle
GN 563.1-40-M5-16KT - Plastic
Item-no.: 1351007Supplier number: 563.1-40-M5-16EAN: 4045525380400
Quantity:
1 PiecePackable
Item available in 16 variants:
Price and stock visible after login
Description
T-handle screws GN 563.1 can be used on operating levers as well as on clamping fixtures. These handles lend themselves ideally for very high manual clamping forces.

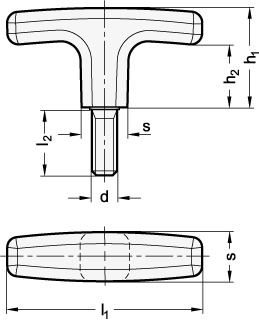

Attributes
Handle length l1
40
Handle length l11
41
Length l2
16
Material
KT - Plastic
RoHS
Ja
Screw thread d
M 5
Weight
0.016 kg
h1
28
h2
18.5
s Square
13
