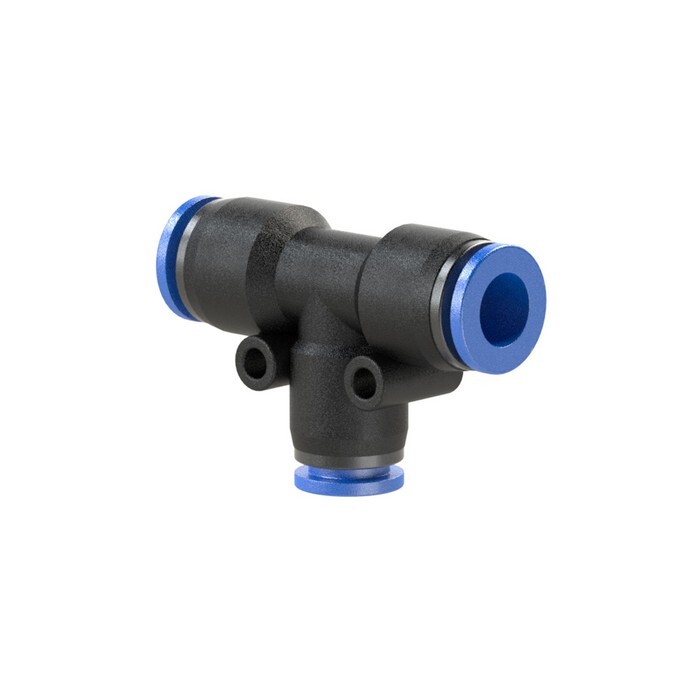

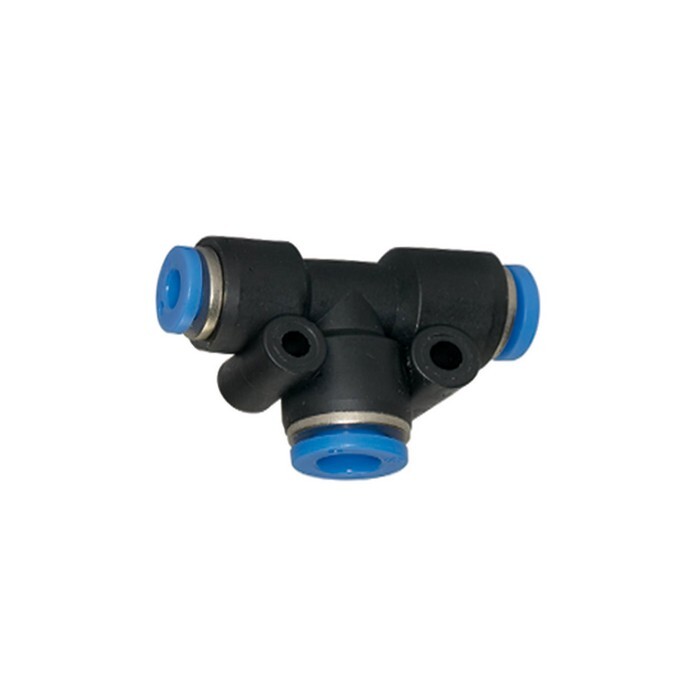

T-connector reduced
2x SD6, 1x SD4 Plastic, blue seriesItem-no.: 1114216Supplier number: 138.0604customs tariff number: 39174000EAN: 4047322026369
PU (PU NW): 10 PieceQuantity:
1 PiecePackable
Item available in 13 variants:
Price and stock visible after login
Description
Push-in T-connector »Blue Series«, reducing, for hose exterior Ø 2x6/1x4 mm, pmax short term 15 bar. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic.
Attributes
Application range
Air, vacuum
Arbeitsdruck max. kurzzeitig
15 bar
For outer hose Ø
2x6 / 1x4 mm
L1
19,0 mm
Loosening ring
Plastic
Material
Plastic or nickel-plated brass
Medium
Compressed air, neutral and non-hazardous gases and liquids
Product range
Blue series
Recommended hose
PU or PA (nylon)
Riegler article number
109835
Sealing material
NBR
Series
Blue series
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
15 bar
Working pressure min.
-0,95 bar
für Schlauch-Außen-Ø1
6 mm
für Schlauch-Außen-Ø2
4 mm
