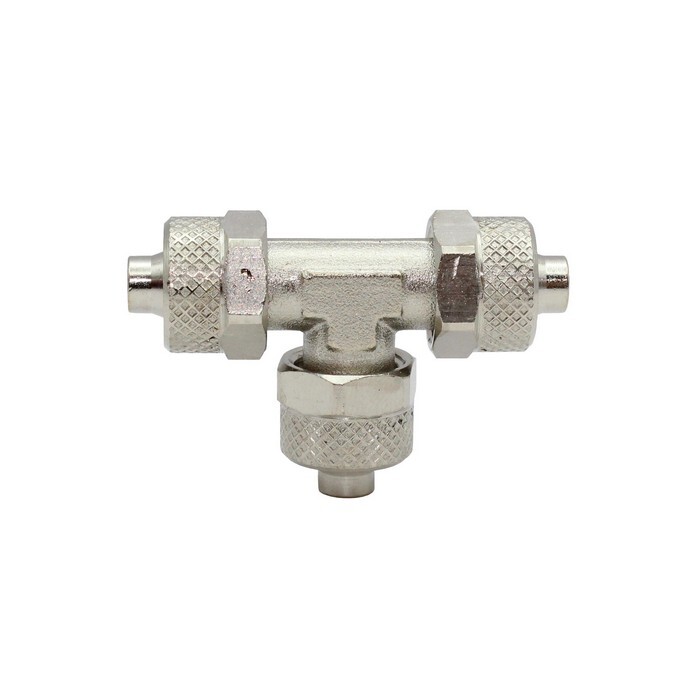

T-fitting
SD6/4, L 44 mm Nickel-plated brassItem-no.: 1114761Supplier number: 14.800-6customs tariff number: 74122000EAN: 4047322027090
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
T-connection, for hose 6/4 mm, AF 9, Working pressure max. 18 bar, nickel-plated brass.
Attributes
For hose
6/4 mm
L1
44,0 mm
Material
Nickel-plated brass
O-ring
without
Operating temperature max.
300 °C
Operating temperature min.
-20 °C
Riegler article number
110606
SW
9 mm
Working pressure max.
18 bar
für Schlauch-Außen-Ø
6 mm
