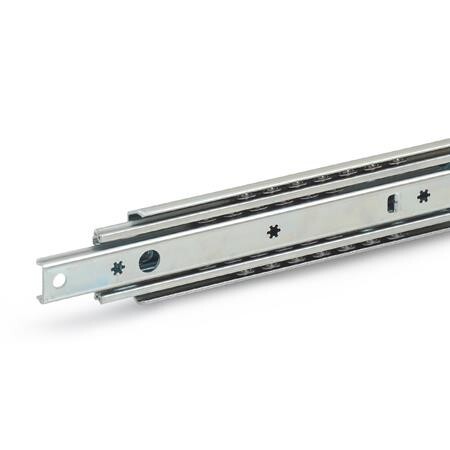

Teleskopschienenpaar
GN 1422-300-B-2-ZB Vollauszug und SelbsteinzugST - Stahl
Item-no.: 1343721Supplier number: 1422-300-B-2-ZBcustoms tariff number: 83024200EAN: 4045525411593
Quantity:
1 Pair
=
1 PiecePackable
Price and stock visible after login
Description
Telescopic slides with self-retracting mechanism GN 1422 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension). The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
Attributes
At 100.000 cycles
640
Code number
2 - Fastening via countersunk holes
Form
B - with rubber stop
Fs per pair in N at 10,000 cycles
940
Length l1
300
Material
ST - Steel
RoHS
Ja
Surface
ZB - galvanised, blue passivated
Weight
1.500 kg
l2 Stroke
285
l3
585
