Teleskopschienenpaar mit Vollauszug
GN 1450-400-F-1-NI EdelstahlNI - Edelstahl
Item-no.: 1343805Supplier number: 1450-400-F-1-NIcustoms tariff number: 83024200EAN: 4045525433373
Quantity:
1 Pair
=
1 PiecePackable
Price and stock visible after login
Description

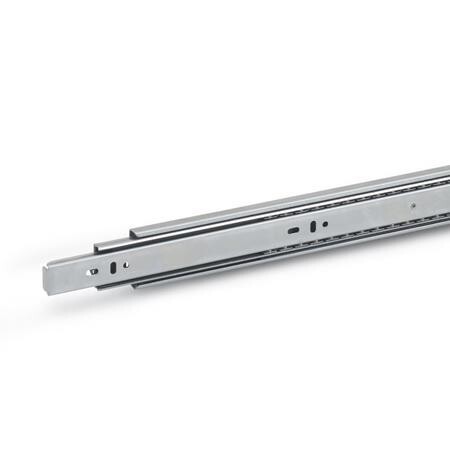

Stainless steel telescopic slides GN 1450 are installed vertically and in pairs. The stroke reaches ≈ 100 % of the nominal length l1 (full extension). The telescopic slides are delivered in pairs. They can be installed on the extension on either the left or right side due to the mechanics. All mounting holes are easy to reach through auxiliary holes. Only the mounting holes are shown, but other production-related holes may be present.
Attributes
At 50.000 cycles
360
Code number
1 - Fastening via through-holes
Form
F - with rubber stop, rear locking, separating function
Fs per pair in N at 10,000 cycles
480
Length l1
400
Material
NI - Stainless steel
RoHS
Ja
Weight
1.180 kg
l2 Stroke
400
l3
800
