Pferd

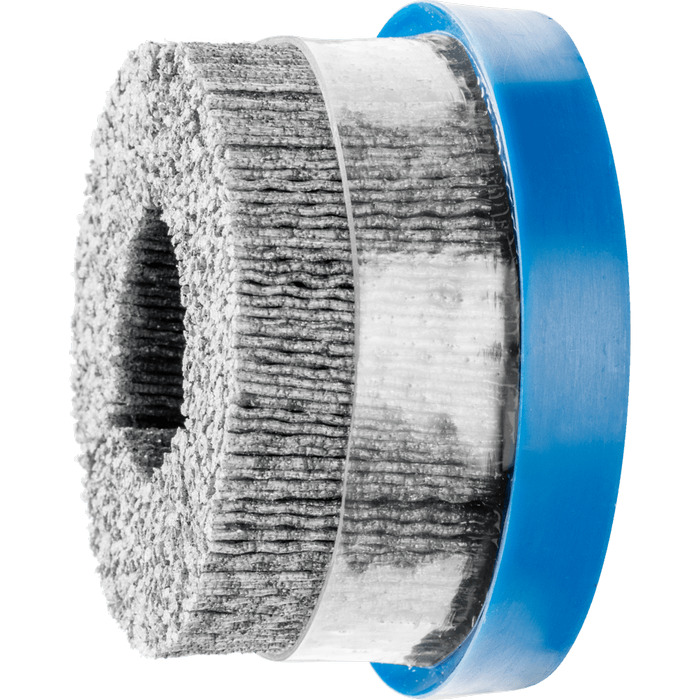

Plastic disc brush

DBUR 75/M14 SiC 80 1.10 SG Pferd
Item-no.: 1234115Supplier number: 43400004customs tariff number: 96035000EAN: 4007220899380

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Particularly aggressive brush with bridle. Particularly suitable for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected. Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement. Plastic filament withstands temperatures up to 220 °C.
Attributes
Bristle material
Silicon carbide (SiC)
Grit size
80
Holder system
Thread
Length, facing to ring
19 mm
Length, trim
38 mm
Max. RPM
6000 RPM
RPM, max.
6000 RPM
RPM, opt. from
2400 RPM
RPM, opt. to
3900 RPM
Series
byly_DBUR_SG_4340
Ø External metric
75 mm
Ø Thread
M14x2
Ø Trimming material
1.1 mm
