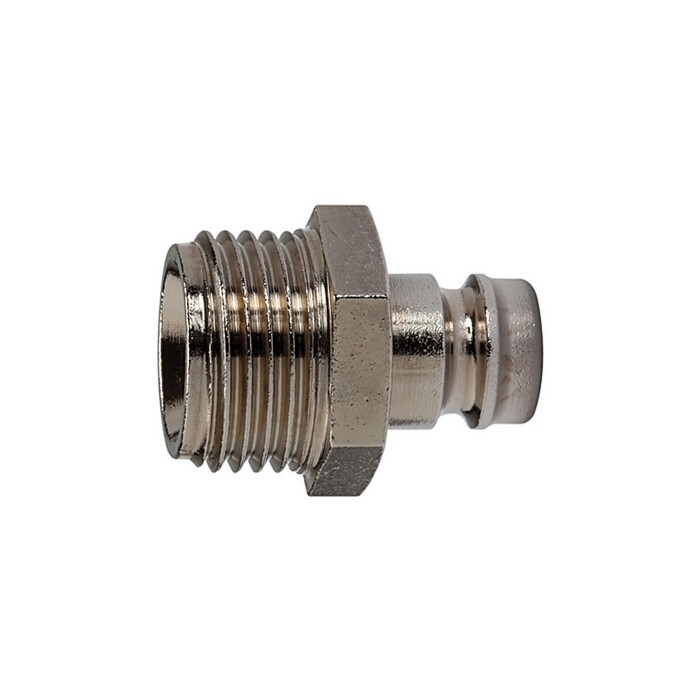

Temperiereinstecknippel
DN6, AG 1/4", L 29 mm, mit Absperrventil MessingItem-no.: 1243785Supplier number: 270.624customs tariff number: 74122000EAN: 4047322258302
Quantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Tempered plug-in nipple DN 6, with blocking valve, ET, nickel-plated brass, G 1/4, Operating pressure max. 15 bar. Compatible with HASCO Z 8 system. For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines. Optionally with free passage, one or both sides sealing. Female-threaded couplings and plugs with female-threaded PTFE seal.
Attributes
Ambient temperature max.
160 °C
Ambient temperature min.
-20 °C
Ball
Stainless steel
Length (battery)
29,0 mm
Material
Nickel-plated brass
Max. operating pressure
15 bar
Medium
Air, water, oil, vacuum
Medium temperature max.
160 °C
Medium temperature min.
-20 °C
Riegler article number
107937
SW
15 mm
Screw thread
G 1/4
Sealing material
FKM (PTFE-coated)
Spray ring
Stainless steel
Spring
Stainless steel
