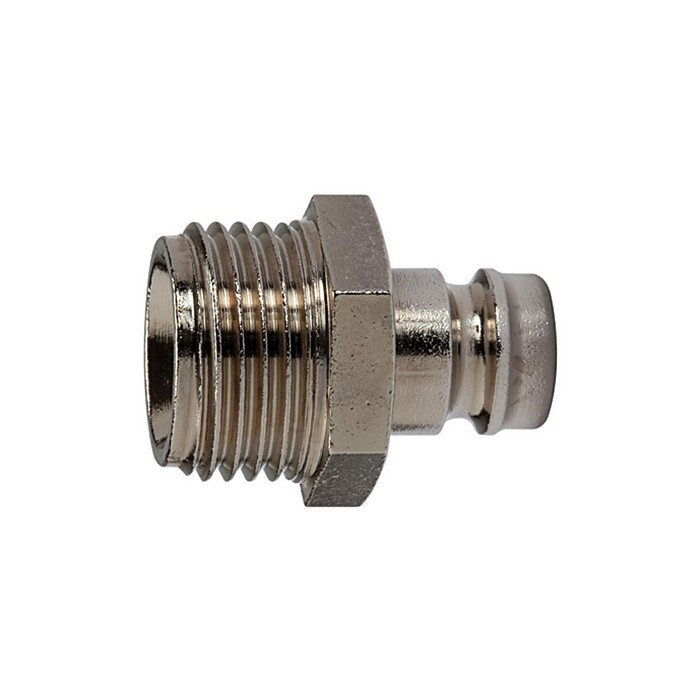

Temperature control plug-in nipple
DN6, AG M8x0.75, L 24 mm brassItem-no.: 1243779Supplier number: 270.610customs tariff number: 74122000EAN: 4047322258234
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description
Tempered plug-in nipple DN 6, Exterior thread, Brass, M8x0.75, AF 11, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C. Compatible with HASCO Z 8 system. For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines. Optionally with free passage, one or both sides sealing. Female-threaded couplings and plugs with female-threaded PTFE seal.
Attributes
Ambient temperature max.
160 °C
Ambient temperature min.
-20 °C
Ball
Stainless steel
Length (battery)
24,0 mm
Material
Brass 2.0401
Max. operating pressure
15 bar
Medium
Air, water, oil, vacuum
Medium temperature max.
160 °C
Medium temperature min.
-20 °C
Riegler article number
107931
SW
11 mm
Screw thread
M8x0,75
Sealing material
FKM (PTFE-coated)
Spray ring
Stainless steel
Spring
Stainless steel
