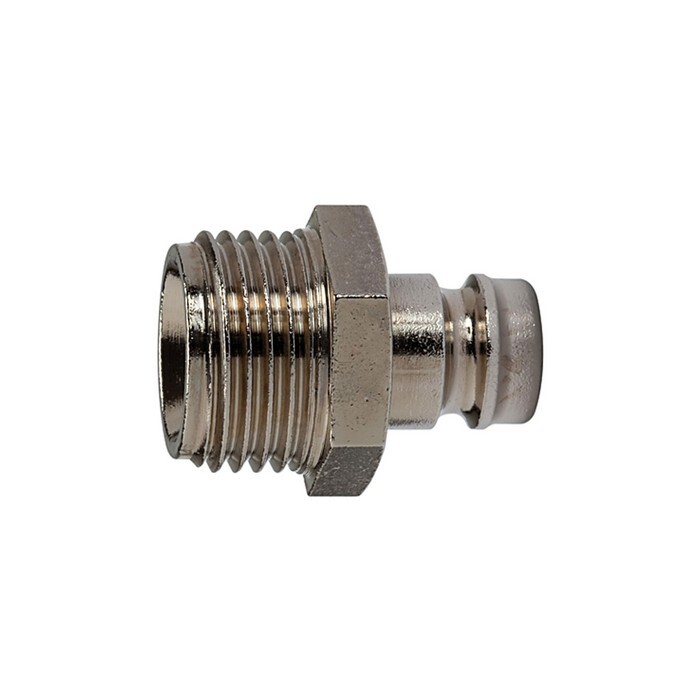

Temperature control plug-in nipple
DN9, AG 3/8", L 26 mm brassItem-no.: 1243795Supplier number: 280.614customs tariff number: 74122000EAN: 4047322259132
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Tempered plug-in nipple DN 9, Exterior thread, nickel-plated brass, G 3/8, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C. Compatible with HASCO Z 8 system. For temperature control applications involving hot or cold water or heat transfer oil. Optionally with free passage, one or both sides sealing. Female-threaded couplings and plugs with female-threaded PTFE seal.
Attributes
Ambient temperature max.
160 °C
Ambient temperature min.
-20 °C
Ball
Stainless steel
Length (battery)
26,0 mm
Material
Nickel-plated brass
Max. operating pressure
15 bar
Medium
Air, water, oil, vacuum
Medium temperature max.
160 °C
Medium temperature min.
-20 °C
Riegler article number
107979
SW
17 mm
Screw thread
G 3/8
Sealing material
FKM (PTFE-coated)
Spray ring
Stainless steel
Spring
Stainless steel
