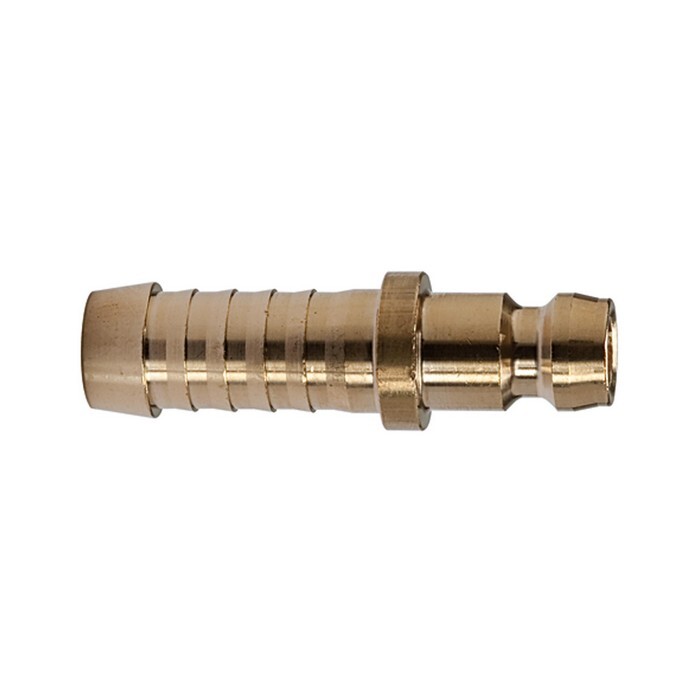

Tempering spout
DN6, SD9, L 39.5 mm brassItem-no.: 1243804Supplier number: 270.601customs tariff number: 74122000EAN: 4047322258203
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Tempered plug-on connector DN 6, Brass 2.0401, Hose connection 9 mm, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C. Compatible with HASCO Z 8 system. For temperature control applications involving hot or cold water or heat transfer oil, e.g. for cooling circuits on plastics processing machines. Optionally with free passage, one or both sides sealing. Female-threaded couplings and plugs with female-threaded PTFE seal.
Attributes
Ambient temperature max.
160 °C
Ambient temperature min.
-20 °C
Ball
Stainless steel
Hose connection
9 mm
Length (battery)
39,5 mm
Material
Brass 2.0401
Max. operating pressure
15 bar
Medium
Air, water, oil, vacuum
Medium temperature max.
160 °C
Medium temperature min.
-20 °C
Riegler article number
107930
Sealing material
FKM (PTFE-coated)
Spray ring
Stainless steel
Spring
Stainless steel
