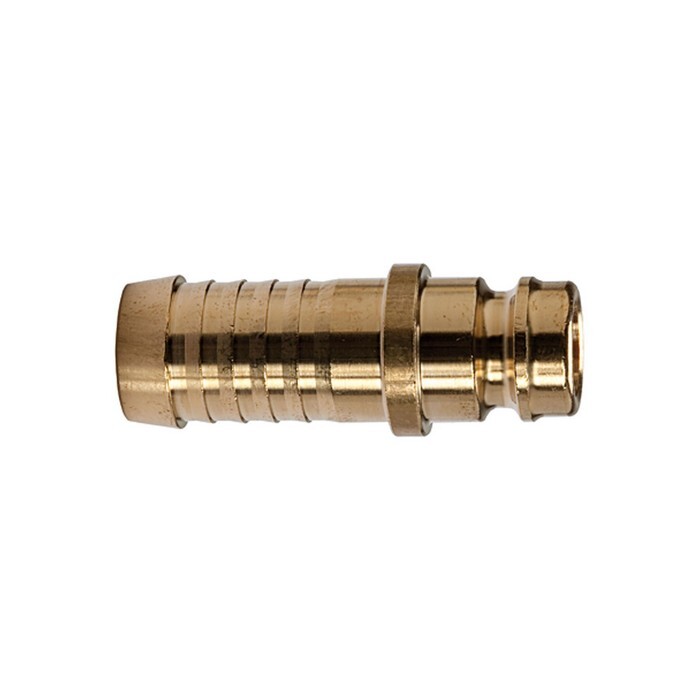

Tempering spout
DN9, SD13, L 39.5 mm brassItem-no.: 1243805Supplier number: 280.601customs tariff number: 74122000EAN: 4047322259040
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Tempered plug-on connector DN 9, Brass 2.0401, Hose connection 13 mm, Operating pressure max. 15 bar, Temp. -20 °C to 160 °C. Compatible with HASCO Z 8 system. For temperature control applications involving hot or cold water or heat transfer oil. Optionally with free passage, one or both sides sealing. Female-threaded couplings and plugs with female-threaded PTFE seal.
Attributes
Ambient temperature max.
160 °C
Ambient temperature min.
-20 °C
Ball
Stainless steel
Hose connection
13 mm
Length (battery)
42,0 mm
Material
Brass 2.0401
Max. operating pressure
15 bar
Medium
Air, water, oil, vacuum
Medium temperature max.
160 °C
Medium temperature min.
-20 °C
Riegler article number
107974
Sealing material
FKM (PTFE-coated)
Spray ring
Stainless steel
Spring
Stainless steel
