Description

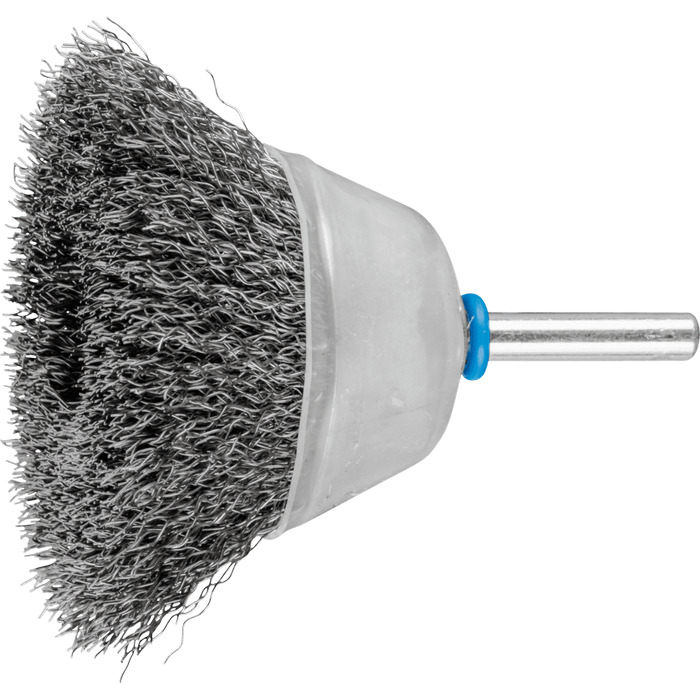

Generally suitable for cleaning, derusting and smoothing, as well as removal of corrosion and paint. Particularly suitable for brushing on large, flat and easily accessible surfaces due to face-down use with the entire brush face applied to the workpiece. In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD uses wire quality 1.4310 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) withstands temperatures up to 450 °C. Cup brush with plastic-covered brush body.
Attributes
Bristle material
Stainless steel wire (INOX)
Holder system
Shank
Length, total
75 mm
Length, trim
20 mm
Material
Stainless steel
Material suitability INOX
Very well suited
Material suitability varnish
Very well suited
Max. RPM
10500 RPM
RPM, opt. from
4200 RPM
RPM, opt. to
6800 RPM
Series
byly_TBU_INOX_4321
Width metric
10 mm
Wire thickness
0,3 mm
Ø
50 mm
Ø External metric
50 mm
Ø Shaft metric
6 mm
Ø Trimming material
0.3 mm
