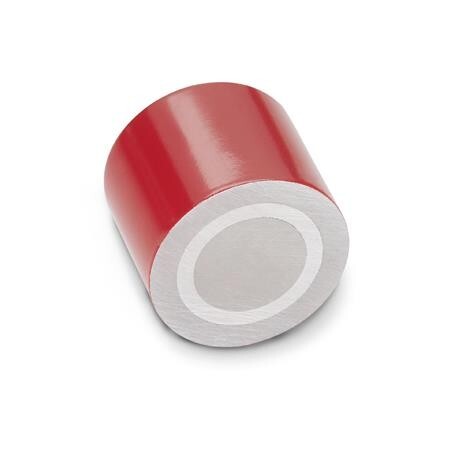

Pot magnet 61N
GN 52.3-AN-27-RT AINiCo 500Item-no.: 1021596Supplier number: 52.3-AN-27-RTcustoms tariff number: 85051190EAN: 4045525665095
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Retaining magnets GN 52.3, are combined with the zinc-plated or red-painted steel housing and insulation of brass/aluminum into a system that shields and strengthens the magnet for optimal transmission of the magnetic flux onto the magnetic surface. For easier handling and to avoid demagnetization, a galvanized iron plate protects the magnetic surface of the magnet during storage and transport.
Attributes
Diameter d
27
Nennhaftkräfte
65 N
Nominal holding forces in N
65
RoHS
Ja
Solenoid material
AN - AlNiCo
Surface
RT - red, lacquered
Weight
0.089 kg
d2
M 6
h
25
t
8
