Door lock

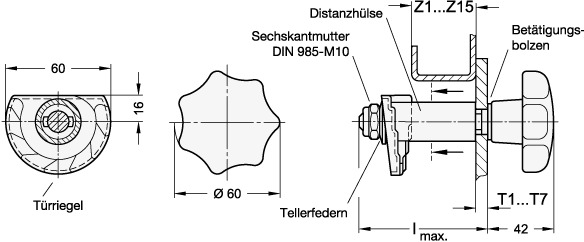

Latches GN 117 lock by a turning operation clockwise (right), which moves the cam latch into the locked position behind the door frame. The latches are vibration proof and have a pulling-in range of 10 mm. Attention is drawn to its simple and hence cost saving installation. The various operating bolts and distance pieces allow for a door thickness T1...T7 from 1,5 to 12 mm and a frame thickness Z1...Z15 from 0 to 51 mm.
