Ruko

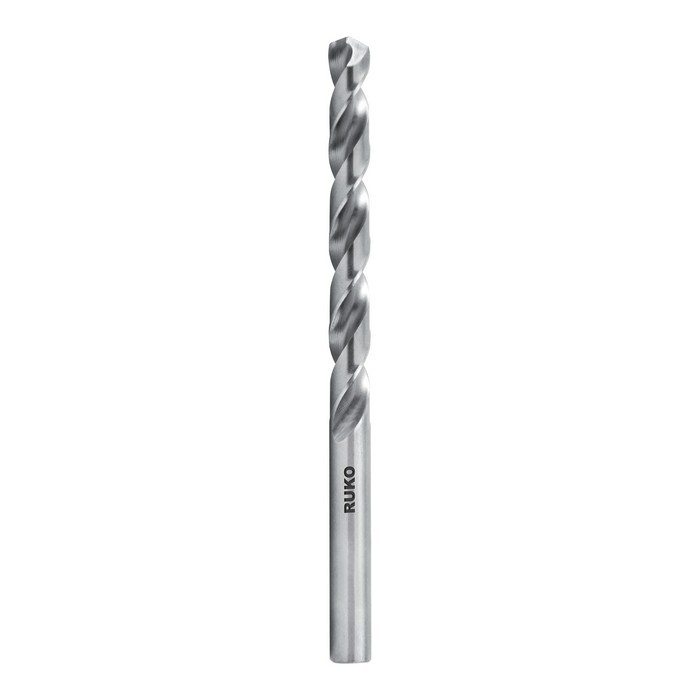

Twist drill DIN 338

Type TI HSSECo8 2.50 Ruko 281025E
HSSE-Co 8
Item-no.: 1529340Supplier number: 281025EEAN: 4007140341891

PU (Packaging): 10 PieceQuantity: ​​ 10 PiecePackable
Short-term Sourcing

Description
Powerful special drill that should ideally be used for titanium base alloys as well as stainless, acid-resistant and heat-resistant austenitic steels. It is also suitable for high strength steels with low ductility. Under certain conditions, these drills can be used for special alloys such as hastelloy, inconel and nimonic etc.HSSE-Co 8:Heavy-duty high speed steel with 8 % cobalt content.Extremely high ductility and outstanding heat resistance, for drilling holes in high strength materials, austenitic steel, for hot working etc. with a strength of up to 1100 N/mm².
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Attributes
Coat
Uncoated
Core
thickened
Cutting direction
right-hand cutting
DIN
338
Diameter
2,5 mm
Drilling depth
5 x diameter
Groove profile
normal
Length (battery)
57 mm
Material
HSSE-Co 8
Series
RUKO037281E
Shaft
Cylindrical shank
Spiral angle
36°
Spiral length
30 mm
Tip angle
130°
Tip bevel
Form C: Cross grinding
Tolerance
h8
Type
VA
