Ruko

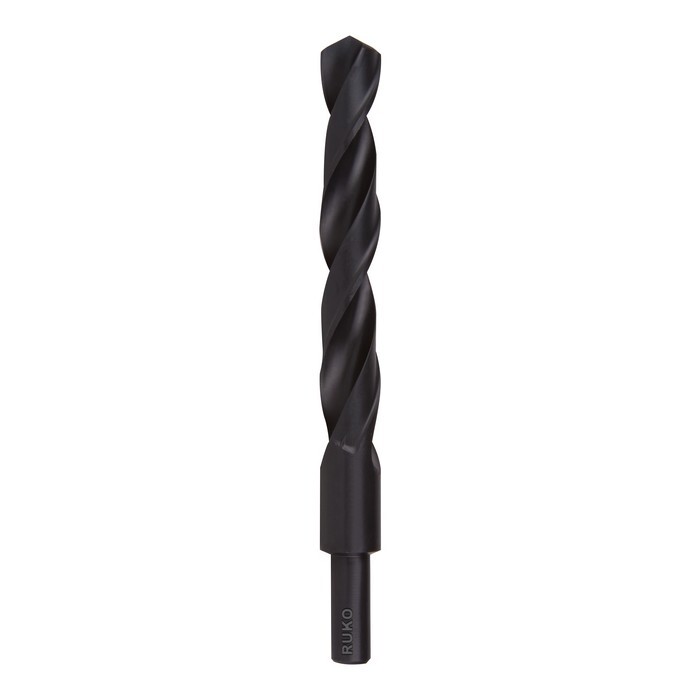

Twist drill DIN 338 type N

22.0 mm, HSS-R reduced shank Ruko 200220
HSS
Item-no.: 1011227Supplier number: 200220EAN: 4007140052711

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
High-performance rolled, steam-treated twist drill made from heavy-duty high speed steel. The manufacturing procedure (no structural disruption) solidifies the material making it more elasticated. This makes it more resistant to fracture and suitable for robust drilling units (e.g. hand-held drilling machines).Ideally suitable for drilling larger drilling diameters on all commonly-used drilling machines with a clamping chuck up to 13,0 mm.
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Piktogramm
Attributes
Coat
Black oxidised surface
Core
normal
Cutting direction
right-hand cutting
DIN
338
Diameter
22 mm
Drilling depth
5 x diameter
Groove profile
normal
Length (battery)
205 mm
Material
HSS
Series
RUKO053200
Shaft
Stepped shaft
Spiral angle
25° - 30°
Spiral length
170 mm
Tip angle
118°
Tip bevel
Form N: conical bevelled edge normal bevelled edge
Tolerance
h8
Type
N
