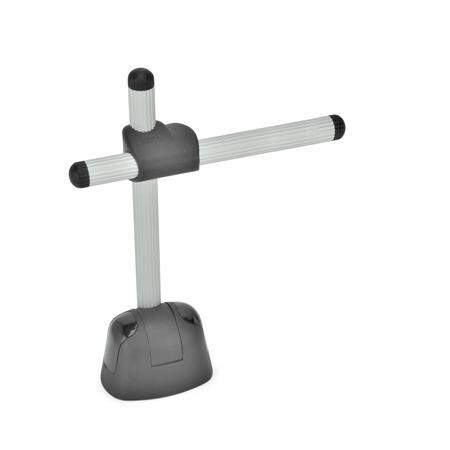

Universal clamp stand

With the universal work holding and positioning fixture GN 177, the work gripper block GN 177.1 can be turned rapidly and safely into the desired position. The adjustable retaining tube fixed in the base has eleven indexing positions. With only one clamping screw (hexagon socket) each, base, cross piece and the work gripper block GN 177.1 can be fixed on the retaining tubes in the required position. The serrated profile on the retaining tube prevents any unwanted movement independent of the tightening torque of the clamping screw.
