3/2-way ball valve Futura series IG 0-16 bar, Outlet lockable

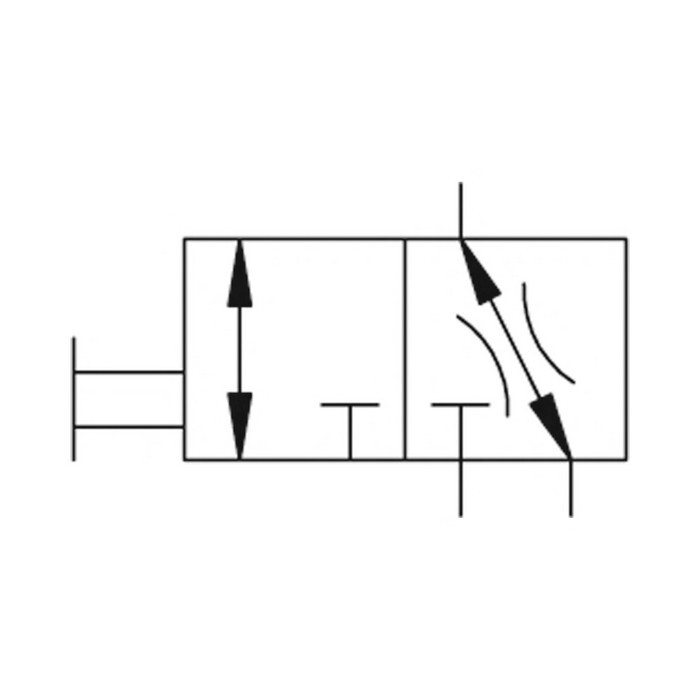

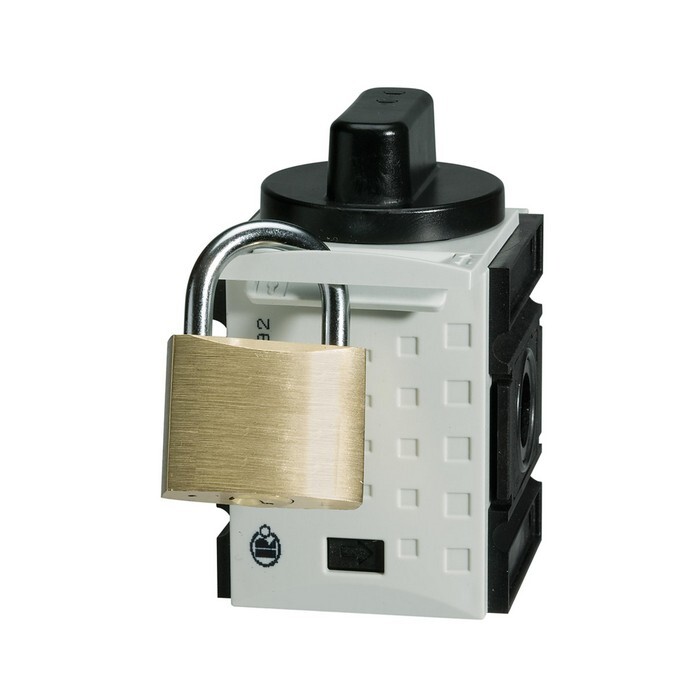

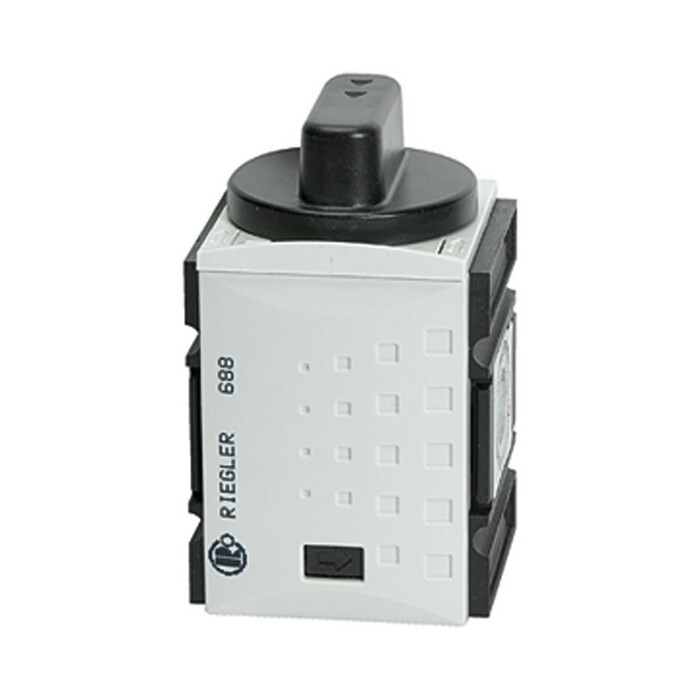

Ball valve 3/2-way »FUTURA«, lockable, Size 1, G 1/4, Exhaust G 1/4, Input pressure max. 16 bar, Temperature -10 °C to 50 °CLockable ball valve, 3/2-way type including silencer, mechanically operated. Rotary switch can be turned 90°, with indication of positions: Horizontal: Input closed - outlet exhaustedVertical: Flow open - exhaust closedExhaust air can be collected.
