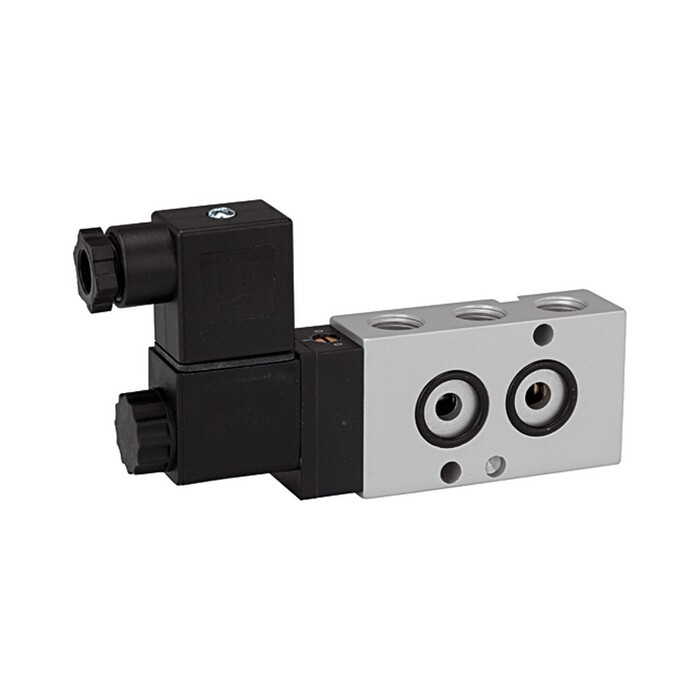

5/2-Wegeventil IG 1/4" 1,5-10 bar, 1250l/min, Lochbild nach NAMUR, Alu eloxiert

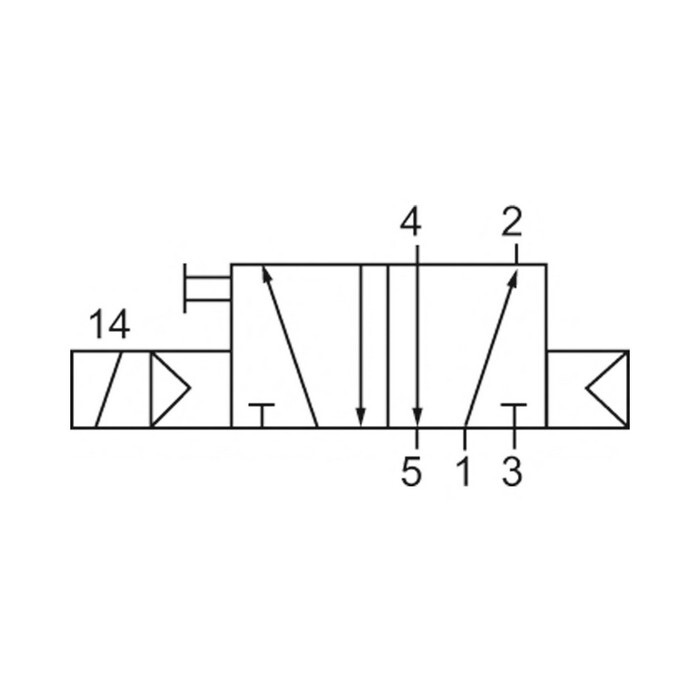

5/2-way valve, NAMUR, Anodised aluminium, Temp. -20 °C to 70 °C, Working pressure 1.5 - 10 bar, Connection G 1/4, 230 V, 50Hz. 3/2 and 5/2-way spool valves, monostable, with air purging function and pneumatic spring return. With latching manual operator and optional outgoing air restriction. The following finishes are available on request:

• Stainless steel, alternatively Ematal surfaces
• ATEX
• suitable for low temperatures
• suitable for high temperatures
