Rundzylinder Serie MI Typ CM IG KD Hub KS D 1-10

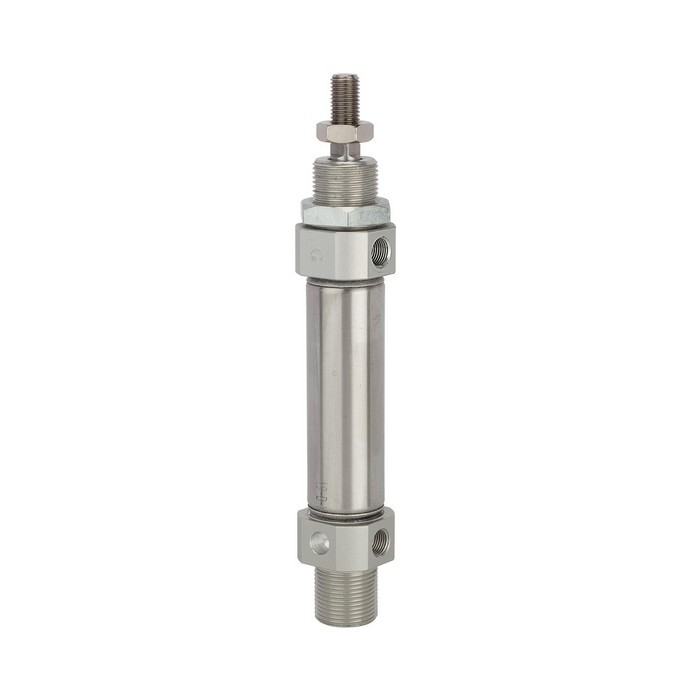

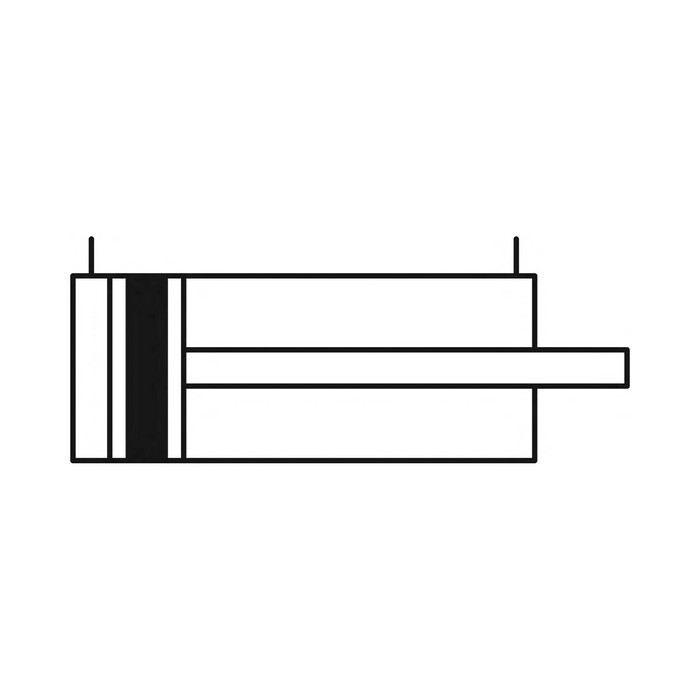

Round cylinder »MI«, double-acting, Magnet, Piston Ø 32, Stroke 10, G 1/8, Working pressure 1 - 10 bar, Temp. -20 °C to 70 °CThese round cylinders are available in the following versions: - »MI« Series, double-acting, Ø 8 to 25 acc. to ISO 6432- »MI« Series, double-acting, Ø 32 to 40- »MSI« Series, single-acting, pressureless in the retracted position, Ø 32 to 40Suitable for filtered, unlubricated or lubricated compressed air. If lubrication is used, it must be continuous. »CA« type = bottom cover with male thread – hinge model?»CM« type = bottom cover with male thread, round – hinge model
