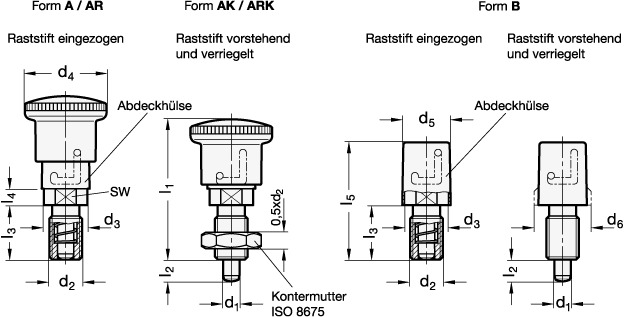

Locking bolt GN Press version

If not operated, the plunger of the locking plungers GN 816.1 is retracted. To move out, move against the spring force and hold in the end position by turning by 90°. The shape of the cam curve secures the plunger against accidental operation. When operat
