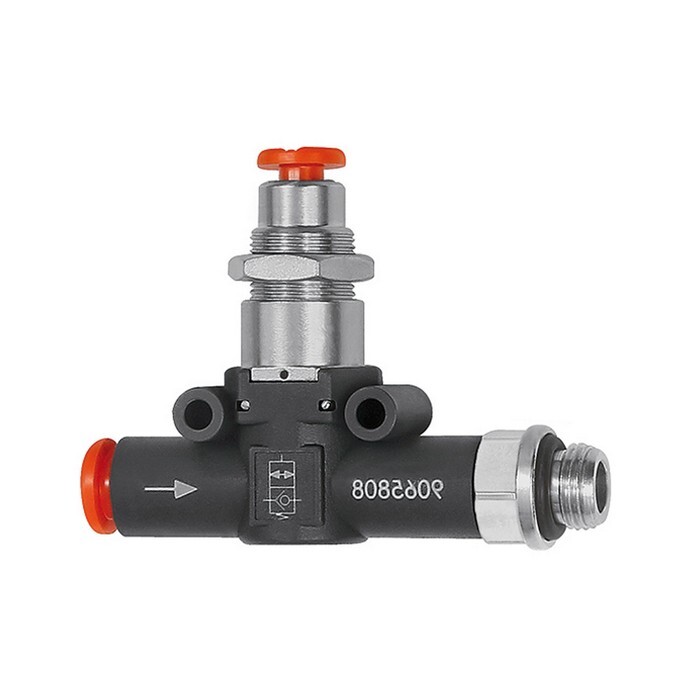

Non-return valve pneu. unlockable AG hose/thread Series lineonline
Packable
Item available in 5 variants:
Price and stock visible after login
Description

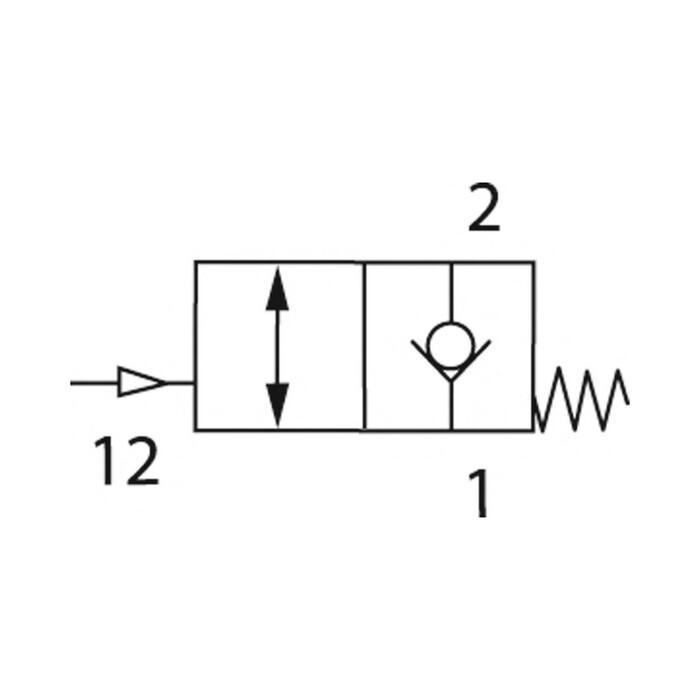

Pneumatically releasable check valve »lineonline«, Hose - thread, G 1/4, for hose Ø 6 mm, Operating pressure max. 10 barFor stopping and positioning the cylinder. If a signal is present at the pilot port, air can flow to and from the cylinder. If no pilot signal is present, the cylinder exhaust port is shut off by the stop valve. The cylinder is stopped.
