Verfahrschlitten Fussform

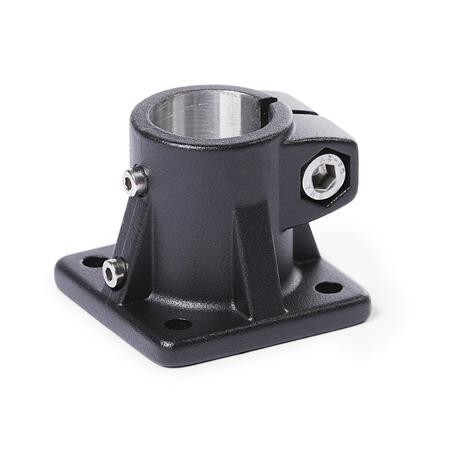

GN 163.1-B30-50-2-SWAL - Aluminium
Item-no.: 1189687Supplier number: 163.1-B30-50-2-SWEAN: 4045525507173
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description
Base plate linear actuator connectors GN 163.1 are based on base plate connector clamps. The additionally provided fastening holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings. With the screw location z, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment.
Attributes
Borehole d1
B 30
Code number
2 - with stainless steel socket head cap screw ISO 4762
L1
52
L2
40
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.145 kg
d1
B - Bore
d2
6.5
d3 Befestigungsschraubeam Mitnehmer
M 4
k Clamping length
50
t
7
x1
60
x2
42
y1
60
y2
42
z Bolting point
M8-25
