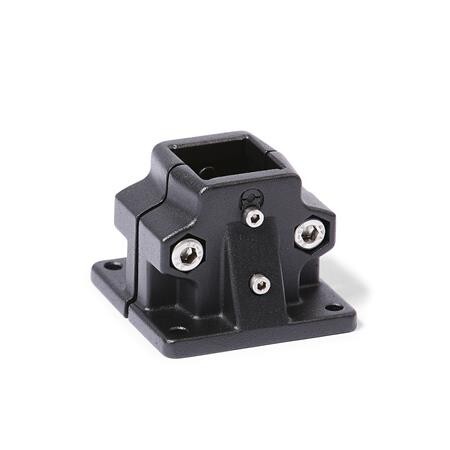

Travelling carriage foot mould square
GN 165.1-V30-2-SWAL - Aluminium
Item-no.: 1189802Supplier number: 165.1-V30-2-SWEAN: 4045525657960
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Base plate linear actuator connectors GN 165.1 are based on base plate connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. With the screw location z, the play of the guide bores d1 / s can be adjusted or the linear actuator connectors can be clamped after adjustment. For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
Attributes
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
Image variants
V - Square
L1
69
L2
46
Material
AL - Aluminium
Recommended accessories clamping lever GN 911 for zl3
63 | 78
RoHS
Ja
Square s
V 30
Surface
SW - black, RAL 9005, textured matt
Weight
0.270 kg
d2
6.5
d3 Befestigungsschraube amMitnehmer
M 4
k Clamping length
58
t
7
x1
75
x2
60
y1
75
y2
60
z Bolting points
M8-35
