Cross-shaped travelling carriage
GN 133.1-G30-B18-2-SWAL - Aluminium
Item-no.: 1487067Supplier number: 133.1-G30-B18-2-SWEAN: 4045525780903
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description

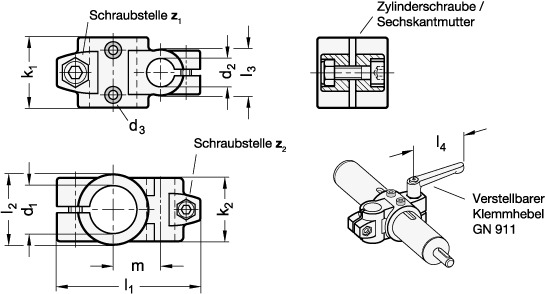

Two-way linear actuator connectors GN 133.1 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings. With the screw locations z1, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment. For quick clamping without tools, the socket cap screws can be replaced by the adjustable levers GN 911 listed in the table as accessories.
Attributes
Code number
2 - with 2 stainless steel cylinder screws ISO 4762
For z2l4
45 | 63
L1
81.5
L2
40
Material
AL - Aluminium
RoHS
Ja
Surface
SW - black, RAL 9005, textured matt
Weight
0.133 kg
Zubehörempf. Klemmhebel GN 911für z1l4
63 | 78
d1
G - with sliding insert
d1 - d2 (with sliding insert)
G30 - B18
d3 Befestigungsschraubeam Mitnehmer
M 4
d3Befestigungs-schraubeam Mitnehmer
M 4
k1 Klemmlänge
40
k2 Klemmlänge
36
l3
26
m
27
z1 Schraubstellen
M8-25
z1Schraub-stelle
M8-25
z2 Screw point
M6-20
