Travelling carriage angular shape

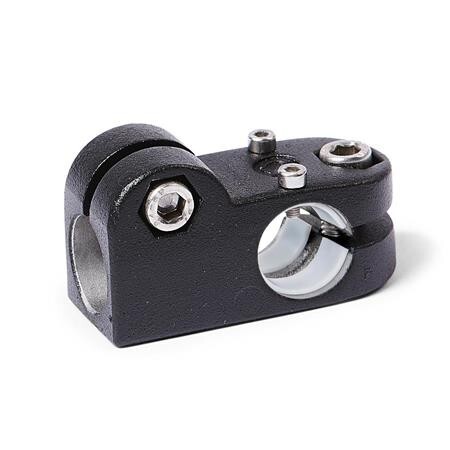

T-angle linear actuator connectors GN 191.1 are based on T-angle connector clamps. The additionally provided fastening holes are used to connect to the drive key of a linear actuator. Bores with the designation G' are equipped with sleeve bearings. With the screw location z2, the play of the guide bores d1 can be adjusted or the linear actuator connectors can be clamped after adjustment. For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
