Locking with lever
GN 623.1-67-SL-10 Elesa 212311PA - plastic, polyamide
Item-no.: 1351492Supplier number: 623.1-67-SL-10EAN: 4045525104600
Quantity:
1 PiecePackable
Item available in 12 variants:
Price and stock visible after login
Description

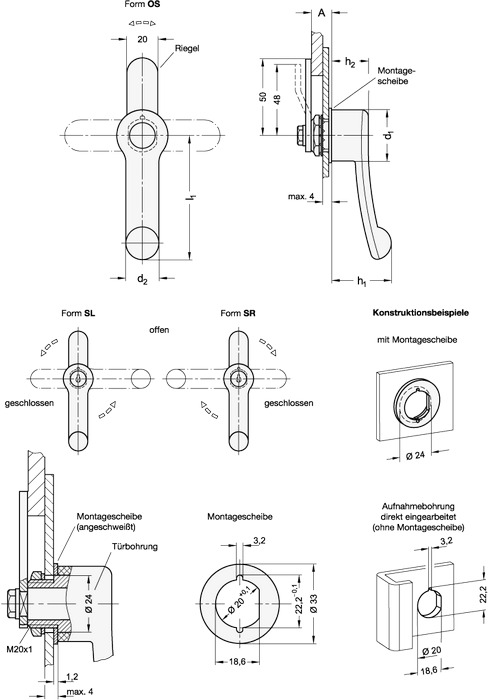

Latches GN 623.1 lock by a turning operation limited to 90°, which moves the latch arm in the locked position behind the door frame. Latch arms with different bend angles cover a latch arm distance A of 10 and 18 mm. The latches with lock are supplied with 2 keys. The key can be removed in both end positions. For parts that take different locks, 400 different lock variants are available with correspondingly numbered keys.
Attributes
Bar spacing A
10
Form
SL - with lock, lockable by turning anti-clockwise (locking different)
Material
PA - plastic, polyamide
RoHS
Ja
Switch lever diameter l1
67
Weight
0.148 kg
d1
32
d2
20
h1
35
h2
25
