Shutter tensioner
GN 852-1700-T2 Heavy duty versionST - Steel
Item-no.: 1399146Supplier number: 852-1700-T2EAN: 4045525425361
Quantity:
1 PiecePackable
Item available in 8 variants:
Price and stock visible after login
Description
Latch type toggle clamps GN 852 are used for very high holding forces as may be required in plastic high pressure mold forming. The stroke of the square U-bolt an be adjusted within its range. In addition to the standard lengths of the square U-bolts shown in the table, a variety of other lengths are also available under the GN 951.2 series.

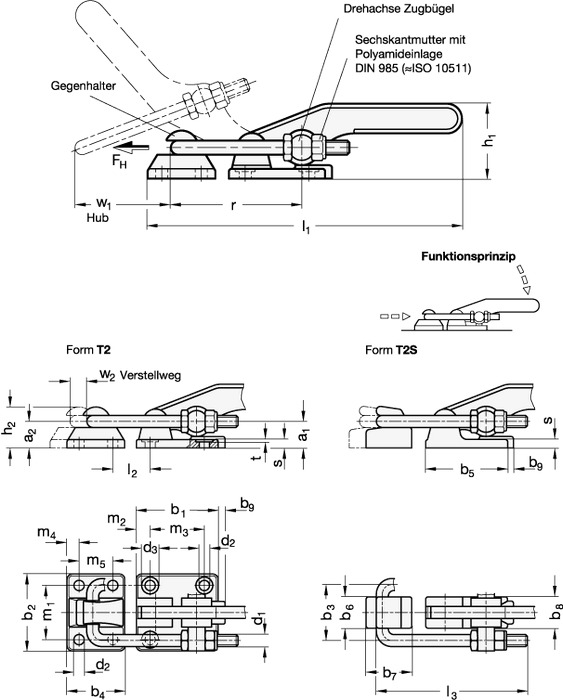

Attributes
A1
22
FH Haltekraft
17000 N
Form
T2 - with fixing holes, with tension bracket, with counterholder
Form T / T2
223
Material
ST - Steel
RoHS
Ja
Size
1700
Weight
1.140 kg
a2
21
b1
68
b2
64
b3
46
b4
48
b5
68
b6
26.5
b7
38
b8
28
b9
6
d1
M 10
d2
8.5
d3
14
h1
55
h2
34.5
l1 Form T2S / TS
218
l2 Min.
33
l3
129
m1
45
m2
11.5
m3
45
m4
10
m5
28
r bei w2 = 0
96
s
7
t
2
w1 Stroke
54
w2 Adjustment range
15
