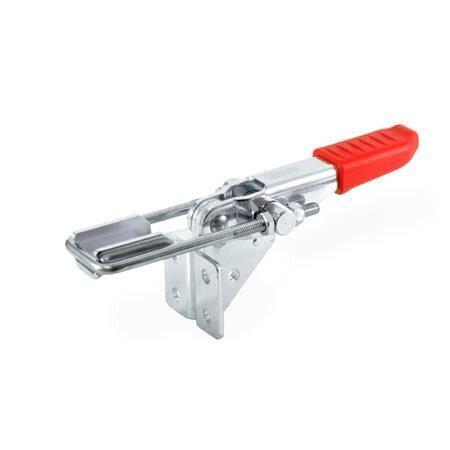

GN 851.2-320-T4 Bracket/arm horizontal to command levelC 10 - Case-hardening steel C 10
Item-no.: 1214211Supplier number: 851.2-320-T4EAN: 4045525387072
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
The stroke of the square U-bolt of latch type toggle clamps GN 851.2 can be adjusted within its range. In the clamped position the square U-bolt and the clamping arm are horizontal to the vertical fixing plane. In addition to the standard lengths of square U-bolts shown in the table, a variety of other lengths are also available under the GN 951.1 series.
Attributes
A
8
FH Haltekraft
3200 N
Form
T4 - with drawbar, with counterholder
L1
159
Material
C 10 - Case-hardening steel C 10
RoHS
Ja
Size
320
Weight
0.305 kg
b1
36
b2
44
b3
32
b4
37
b5
22
d1
M 6
d2
6.5
h1
57.5
h2
15
l2 Min.
6
m1
25.5
m2
8.5
m3
19
m4
10.5
m5
20.5
r bei w2 = 0
78
s
3
w1 Stroke
53
w2 Adjustment range
21
