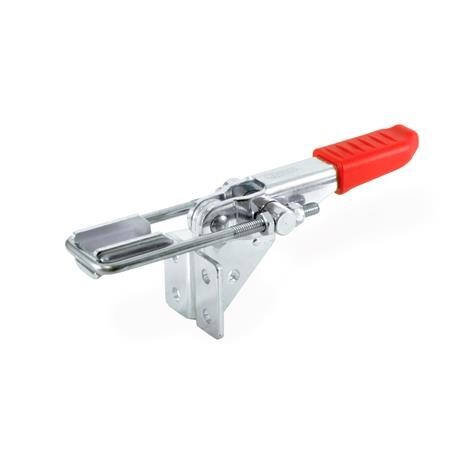

GN 851.2-700-T4 Bracket/arm horizontal to command levelC 10 - Case-hardening steel C 10
Item-no.: 1076835Supplier number: 851.2-700-T4EAN: 4045525387089
Quantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
The stroke of the square U-bolt of latch type toggle clamps GN 851.2 can be adjusted within its range. In the clamped position the square U-bolt and the clamping arm are horizontal to the vertical fixing plane. In addition to the standard lengths of square U-bolts shown in the table, a variety of other lengths are also available under the GN 951.1 series.
Attributes
A
13
FH Haltekraft
7500 N
Form
T4 - with drawbar, with counterholder
L1
225
Material
C 10 - Case-hardening steel C 10
RoHS
Ja
Size
700
Weight
0.675 kg
b1
52
b2
54
b3
38
b4
48.5
b5
26
d1
M 8
d2
8.5
h1
82
h2
23
l2 Min.
8
m1
36.5
m2
10
m3
32
m4
13.5
m5
27
r bei w2 = 0
102
s
3.5
w1 Stroke
64
w2 Adjustment range
25
