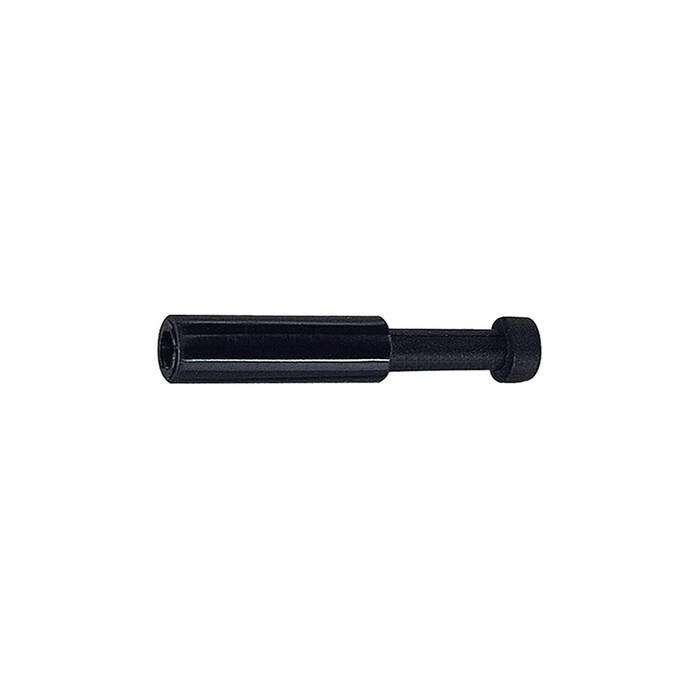

Locking plug
SD8 Blue series, plasticItem-no.: 1114264Supplier number: 144.008EAN: 4047322028813
PU (PU NW): 10 PieceQuantity:
1 PiecePackable
Item available in 6 variants:
Price and stock visible after login
Description
Locking plug »Blue Series«, plug nipple 8 mm, pmax short term 15 bar, Plastic. Push-in fittings series manufactured in plastic and nickel-plated brass. All parts are suitable for use with hoses, tubes or pipes made of plastic. Only recommended for use in combination with quick connectors of the �Blue Series�. Suitability testing for use with other series is the responsibility of the user.
Attributes
Arbeitsdruck max. kurzzeitig
15 bar
L1
36,6 mm
Material
Plastic or nickel-plated brass
Medium
Compressed air
Operating temperature
-20 to + 80 °C
Plug nipple
8 mm
Series
Blue series
Temperature range max.
80 °C
Temperature range min.
-20 °C
Working pressure max.
10 bar
Working pressure min.
-0,95 bar
