Verschlußschraube
GN 745-G3/4-1 Elesa 58298KT - Plastic
Item-no.: 1212925Supplier number: 745-G3/4-1customs tariff number: 39235090EAN: 4045525368873
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 2 variants:
Price and stock visible after login
Description
Suitable for threaded plugs GN 745 are self-adhesive, matt anodized aluminum disks (0.3 mm thick) which can be supplied in sizes d3 = 15 to 31 .

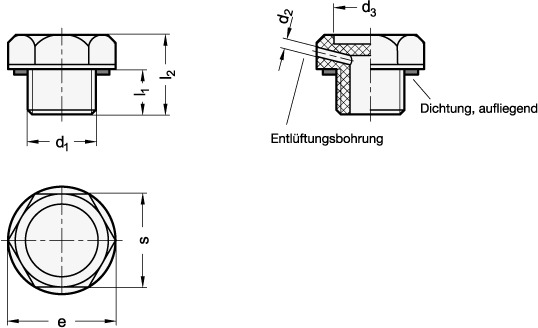

Attributes
Inch thread d1
G 3/4
L1
12
L2
22
Material
KT - Plastic
RoHS
Ja
Vent hole
1 - without vent hole
Weight
0.014 kg
d2 Entlüftungsbohrung
2
d3
25
e
37
e ≈
37
s
32
