Technische Dokumentationbyhx_136004_ms290rob18-kundenzeichnung.pdf
87.21 kB

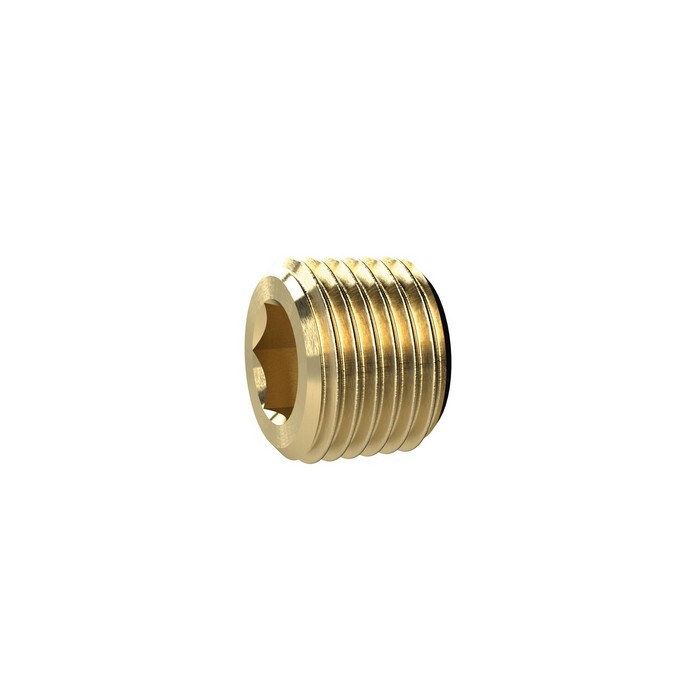

Hexagon socket screw plug
R 1/8" without collar, brassItem-no.: 1406728Supplier number: MS290ROB18customs tariff number: 74122000EAN: 4047322500531
Quantity:
1 PiecePackable
Item available in 9 variants:
Price and stock visible after login
Description
Locking screw, Hexagonal socket, without flange, R 1/8, Brass, Max. working pressure 25 bar, Max. operating temperature 150 °C.
Attributes

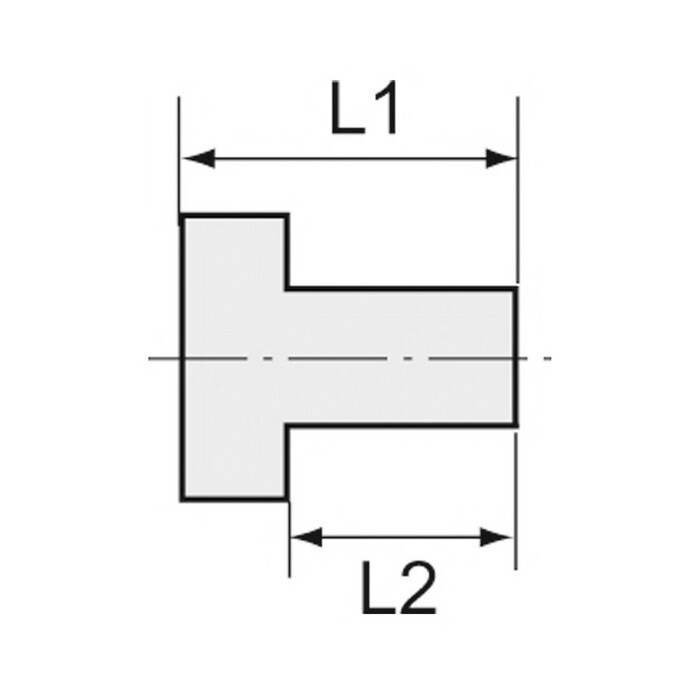

L1
8,0 mm
Material
Brass CW614N
Operating temperature max.
150 °C
Riegler article number
136004
SW
5 mm
Screw thread
R 1/8 hexagon socket
Working pressure max.
25 bar
