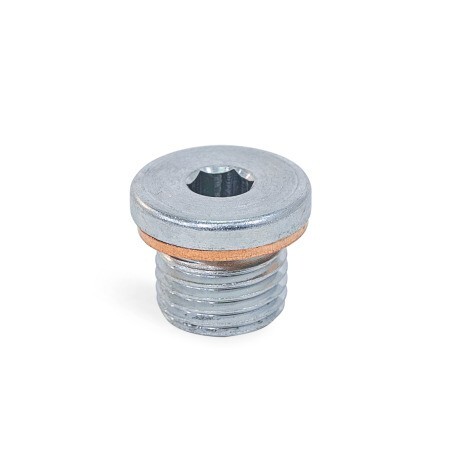

Screw plug, steel
DIN 908-ST-M14X1,5-AC with copper sealing ringST - Steel
Item-no.: 1218417Supplier number: 908-ST-M14X1,5-ACEAN: 4045525899421
Quantity:
1 PiecePackable
Item available in 150 variants:
Price and stock visible after login
Description
The gaskets in types AC and AA correspond to the gaskets DIN 7603, type A (flat gaskets).
Attributes
Borehole diameter
19
Form
AC – with copper sealing ring
L1
12
L2
3
Material
ST - Steel
RoHS
Ja
SW
6
Screw thread d1
M 14 x 1,5
Weight
0.016 kg
d3
14.3
d4 Seal outer-Ø
18
s
1.5
