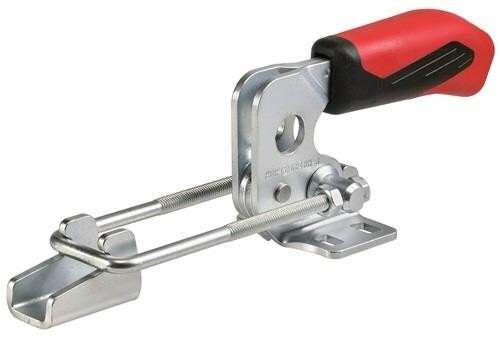

Verschlussspanner
Gr.3, horizontal AMF 6848HItem-no.: 1021606Supplier number: 94706customs tariff number: 84662020EAN: 4020772094706
Quantity:
1 PiecePackable
Price and stock visible after login
Description
horizontal Weitere technische Eigenschaften: · F: 14mm · P: 35mm · Armlänge: 93mm · K: 8,0mm · C: 19mm · D: 6,5mm · L1: 169-216mm · B min.: 53,5mm · Bohrungs-Ø: 6,5mm · B max.: 101mm · H: 19mm · N: 48mm · M: 24,5-32,0mm · E max.: 96mm · L5: 93mm · H2: 135,5mm · E min.: 48,6mm · H1: 70mm · D1: 6mm
Attributes
Borehole spacing inside
48,6-96 mm
Clamping range
53,5-101 mm
Construction type
horizontal
Counter holder height
19 mm
Height opened
135,5 mm
Height tensioned
70 mm
Length tensioned
169-216 mm
Material
galvanised
Size
3
Tensile force
3,2 kN
