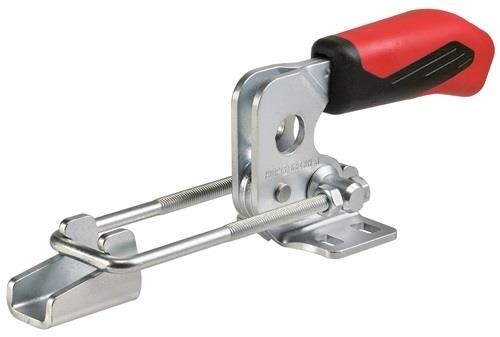

Verschlussspanner
Gr.4, horizontal AMF 6848HItem-no.: 1021608Supplier number: 94714EAN: 4020772094713
Quantity:
1 PiecePackable
Price and stock visible after login
Description
horizontal· · Weitere technische Eigenschaften: · C: 32mm · D: 8,5mm · L1: 209-273mm · Armlänge: 111mm · F: 19mm · P: 53,5mm · K: 9,5mm · L5: 111mm · E max.: 123mm · E min.: 59mm · H1: 94,5mm · H2: 171,5mm · B max.: 130mm · Bohrungs-Ø: 8,5mm · B min.: 66mm · M: 35,0-46,0mm · H: 26mm · N: 64,3mm · D1: 8mm
Attributes
Borehole spacing inside
59-123 mm
Clamping range
66-130 mm
Construction type
horizontal
Counter holder height
26 mm
Height opened
171,5 mm
Height tensioned
94,5 mm
Length tensioned
209-273 mm
Material
galvanised
Size
4
Tensile force
7 kN
