Verschraubung flach dichtend
IG/AG Rp 1/4", SW 30 Edelstahl 1.4408Item-no.: 1733282Supplier number: LDGNR14ES4408FDIAEAN: 4047322722599
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Removable Double threaded nipple, flat sealing, Rp/R 1/4, i./a., AF 30, Working pressure max. 20 bar, Stainless steel 1.4408.

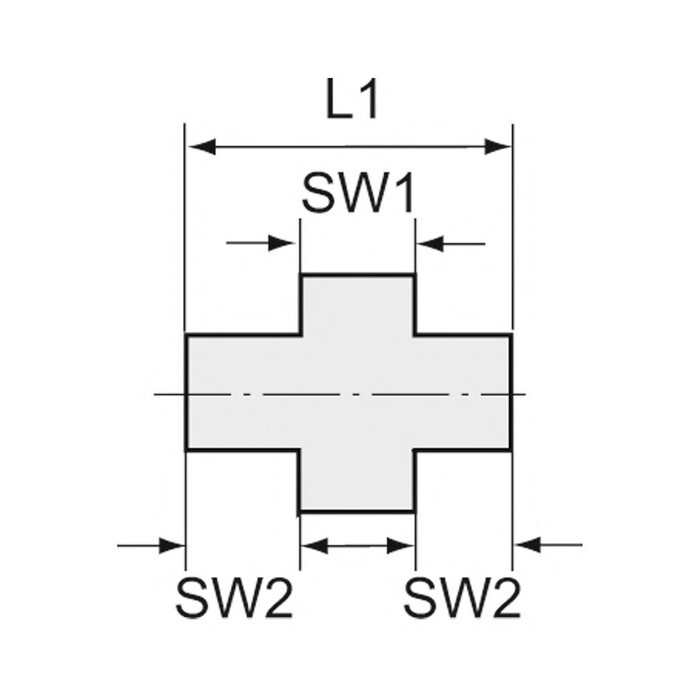

Attributes
L1
45,8 mm
SW 1
30 mm
SW 2
18 mm
Screw thread
Rp/R 1/4
Sealing material
Flat gasket PTFE
Thread standard
DIN EN ISO 7-1
Working pressure max.
20 bar
