Products
Ganter

Adjustment slide with rotary knob

GN 900-80-220-100-D-1 Clamping lever
AL - Aluminium
Item-no.: 1214596Supplier number: 900-80-220-100-D-1EAN: 4045525508675

Quantity: ​​ 1 PiecePackable
Item available in 184 variants:
Short-term Sourcing

Description
Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations. These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way. For fine adjustment there is a scale ring graduated in increments of 0,05 mm, with digital position indicator 0,02 mm.
Attributes
Code number
1 - without clamping lever
Form
D - with rotary knob
Material
AL - Aluminium
RoHS
Ja
Weight
1.301 kg

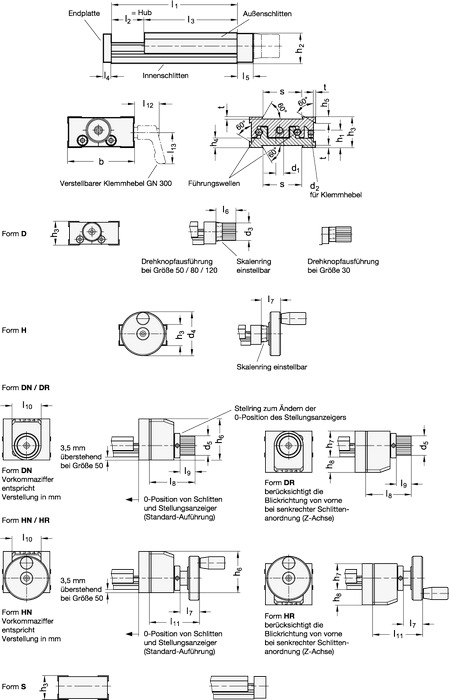

Width B
80
d1
M8 x 1
d2
M 5
d3
22
h1
20.5
h2
35.5
h3
36
h4
10
h5
10
l1 - l2
220-100
l3
120
l4
8
l5
16
l6
24
s
50
t
2
