Products
Ganter

Adjustable slide with handwheel

GN 900-120-235-75-H-2
AL - Aluminium
Item-no.: 1214471Supplier number: 900-120-235-75-H-2EAN: 4045525509061

Quantity: ​​ 1 PiecePackable
Item available in 184 variants:
Short-term Sourcing

Description
Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations. These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way. For fine adjustment there is a scale ring graduated in increments of 0,05 mm, with digital position indicator 0,02 mm.
Attributes
Code number
2 - with clamping lever
Form
H - with handwheel
Material
AL - Aluminium
RoHS
Ja
Weight
3.171 kg

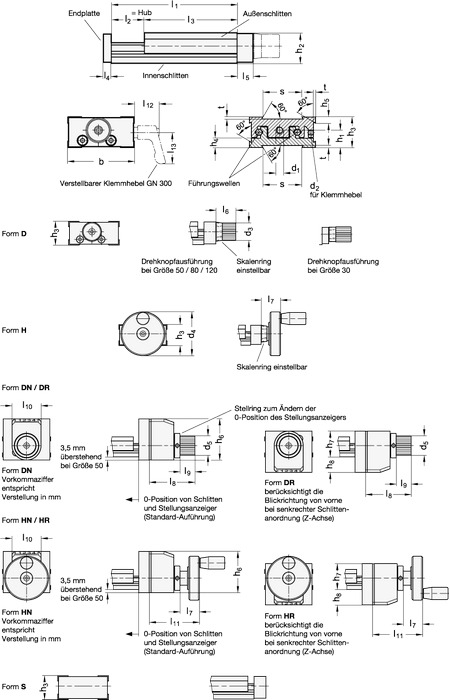

Width B
120
d1
M10 x 1
d2
M 5
d4
100
h1
26.3
h2
45
h3
46
h4
13.8
h5
10
l1 - l2
235-75
l12
25
l13
30
l3
160
l4
10
l5
18
l7
46
s
80
t
2
