Adjustable slide with handwheel
GN 900-80-195-75-H-1 Clamping leverAL - Aluminium
Item-no.: 1214588Supplier number: 900-80-195-75-H-1customs tariff number: 84798997EAN: 4045525508903
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Adjustable slide units GN 900 can be combined with a range of adaptors to give various axis configurations. These fastening units and connecting sets (GN 900.1, GN 900.2, GN 900.3) can be clamped to the adjustable slide units in a rapid and simple way. For fine adjustment there is a scale ring graduated in increments of 0,05 mm, with digital position indicator 0,02 mm.
Attributes
Code number
1 - without clamping lever
Form
H - with handwheel
Material
AL - Aluminium
RoHS
Ja
Weight
1.380 kg

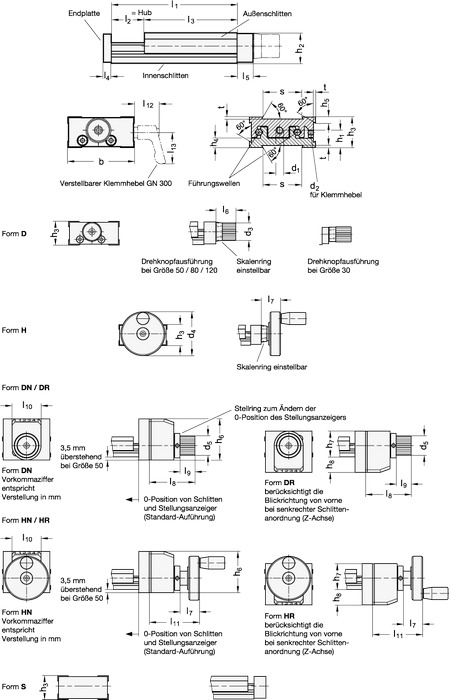

Width B
80
d1
M8 x 1
d2
M 5
d4
80
h1
20.5
h2
35.5
h3
36
h4
10
h5
10
l1 - l2
195-75
l3
120
l4
8
l5
16
l7
31
s
50
t
2
