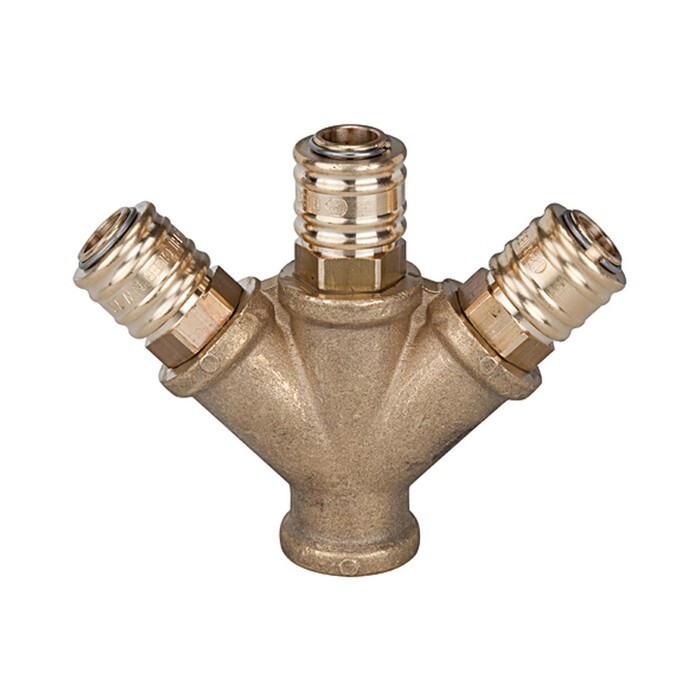

NW7.2 IG 1/2", with 3 couplings brassItem-no.: 1109637Supplier number: 245.58EAN: 4047322061261
Quantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
Distributor with 3 quick-connect couplings I.D. 7.2, Bright brass, G 1/2 IT, Operating pressure 0-35 bar, Temp. -20 °C to 100 °C. 1, 2 or 3-way distributor pieces made of brass with a bare metal surface, pre-assembled with quick disconnect coupling DN 7.2. Available with threaded connection inside or outside or nipple for adaptation into an existing quick disconnect coupling DN 7.2 to DN 7.8.
Attributes
Ambient temperature max.
100 °C
Ambient temperature min.
-20 °C
Connection
G 1/2 IG
Consisting of distributor
Brass bright, G 1/2 IG
Couplings
NW 7.2, bare brass, G 1/2 AG
Height
101,0 mm
Housing
Brass bright
Max. operating pressure
35 bar
Medium temperature max.
100 °C
Medium temperature min.
-20 °C
Operating pressure min.
0 bar
Riegler article number
107269
Safety feature
Industrial adhesive, medium strength
Sealing material
Industrial adhesive, medium strength
Width
123,0 mm
