Vertical clamp, horizontal base
GN 810-75-A Clamping arm openC 10 - Case-hardening steel C 10
Item-no.: 1168898Supplier number: 810-75-AEAN: 4045525897328
Quantity:
1 PiecePackable
Item available in 27 variants:
Price and stock visible after login
Description

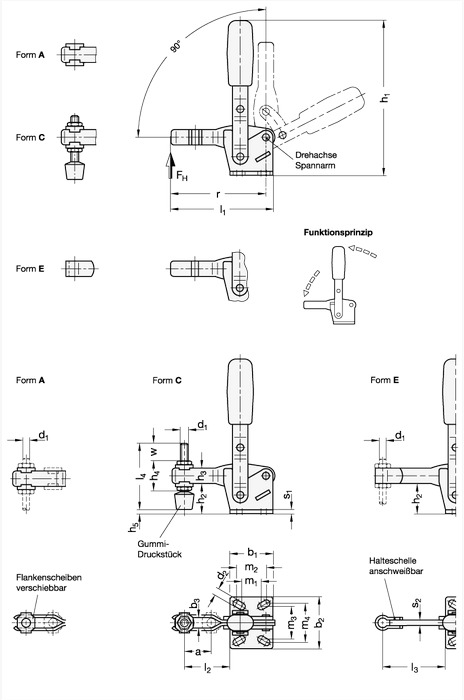

Toggle clamps GN 810 work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position. Toggle clamps in the U-bar version with two flanged washers (type A) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for Type C. Toggle clamps in type E can be adapted to special requirements by welding with the supplied clasp.
Attributes
A
20
FH Haltekraft
750 N
Form
A - open clamping arm, with 2 flank discs
Form E
67
L2
31.5
Material
C 10 - Case-hardening steel C 10
R
62.5
RoHS
Ja
Size
75
Weight
0.096 kg
b1
29
b2
34
b3
5.2
d1
M 5
d2
4.5
h1
98
h2
20.5
h3
11
l1 Form A Form C
66.5
m1
15
m2
16
m3
24
m4
24
s1
2
