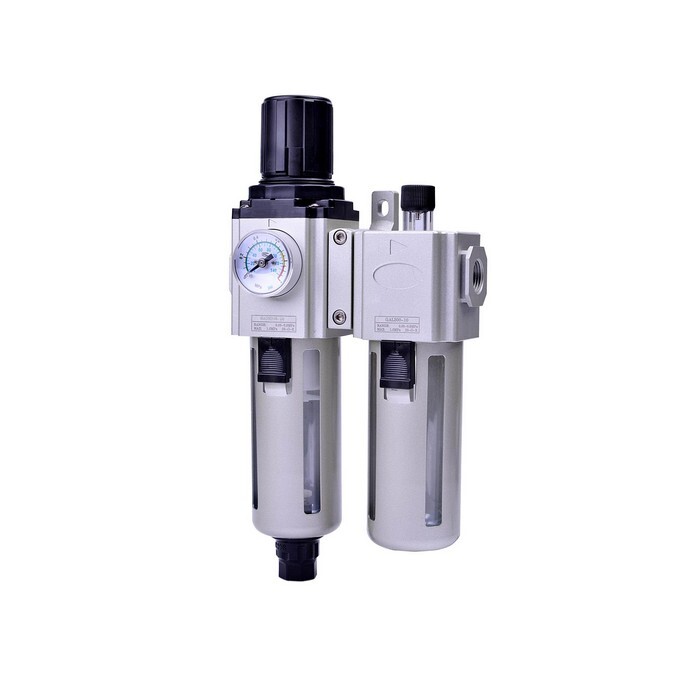

Wartungseinheit Serie GA, 2-teilig
IG 1/2", 1,5-9 bar, BG 400 Polyca.be., Schutzk., halbauto. Ablassv.Item-no.: 1529939Supplier number: GACL 33customs tariff number: 84811005EAN: 4047322666923
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description
Service unit 2-part »GA«, PC container, Protective cage, 5 µm, Size 400, G1/2, Input pressure max. 10 bar, Control range 1.5-9 bar. Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Attributes
A
164,0 mm
BG
400
Condensate drain
Semi-automatic
Container
Polycarbonate container with protective cage
Control range max.
9 bar
Control range min.
1,5 bar
Drip attachment
Brass/POM
Durchflusswertmessung
bei P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 1 bar
Filter fineness
5 µm
Flow rate
3500 l/min
Housing
Die-cast aluminium
Inlet pressure max.
10 bar
Product range
GA
Riegler article number
178495
Screw thread
G 1/2
Sealing material
NBR
Size
400
Spring cap
POM
Temperature range max.
70 °C
Temperature range min.
-5 °C
b
285,5 mm
c
108,0 mm
d
177,5 mm
