Wartungseinheit Serie GA, 2-teilig
IG 1/4", 1,5-9 bar, BG 300 Polyca.be., Schutzk., vollauto. Ablassv.Item-no.: 1529940Supplier number: GACL 11 Acustoms tariff number: 84811005EAN: 4047322666930
Quantity:
1 PiecePackable
Item available in 10 variants:
Price and stock visible after login
Description

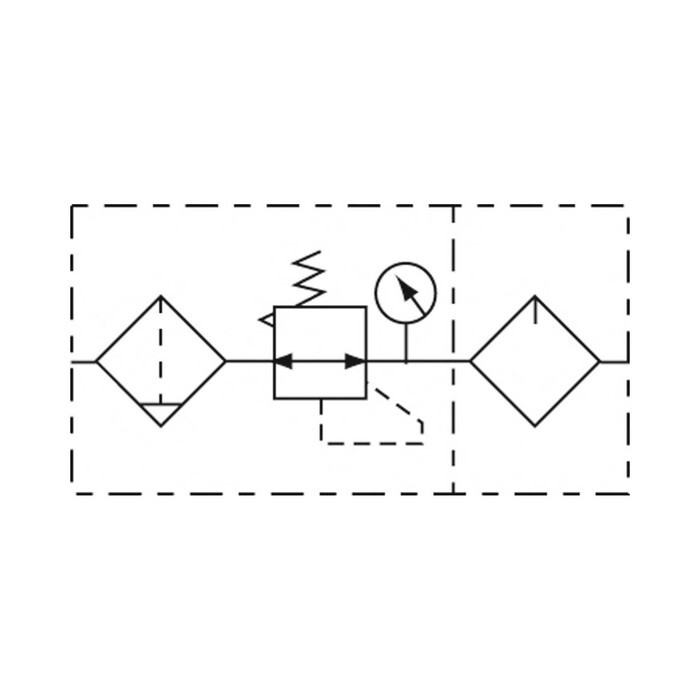

Service unit 2-part »GA«, PC container, Protective cage, 5 µm, Size 300, G1/4, Input pressure max. 10 bar, Control range 1.5-9 bar. Two-piece service units consisting of a diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Attributes
A
128,5 mm
BG
300
Condensate drain
Fully automatic
Container
Polycarbonate container with protective cage
Control range max.
9 bar
Control range min.
1,5 bar
Drip attachment
Brass/POM
Durchflusswertmessung
bei P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar und Druckabfall Δ<sub>p</sub> = 1 bar
Filter fineness
5 µm
Flow rate
1550 l/min
Housing
Die-cast aluminium
Inlet pressure max.
10 bar
Product range
GA
Riegler article number
178496
Screw thread
G 1/4
Sealing material
NBR
Size
300
Spring cap
POM
Temperature range max.
70 °C
Temperature range min.
-5 °C
b
247,0 mm
c
89,0 mm
d
158,0 mm
