Maintenance unit multifix series
IG 1/2", 3550l/min, DN15, max 16 bar Two-piece with polycarbonate containerItem-no.: 1117100Supplier number: CL 33 K-HAEAN: 4047322345286
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description

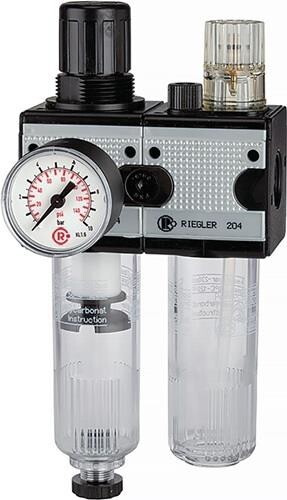

Service unit 2-part »multifix« with polycarbonate container, Size 3, G 1/2, Input pressure max. 16 bar, Control range 0.5 - 10 bar. Two-piece service units consisting of a reversible diaphragm pressure regulator, independent of inlet pressure, with self-relieving design, combined with a centrifugal separator and a proportional lubricator.
Attributes
A
134,8 mm
Ambient temperature
max. +60 °C
Ambient temperature max.
60 °C
Ambient temperature min.
-10 °C
BG
3
Condensate drain
Semi-automatic
Container
Polycarbonate container
Control range
0,5 - 10 bar
Control range max.
10 bar
Control range min.
0,5 bar
DN
15 mm
Drip attachment
PA
Filter fineness
5 µm
Flow rate
5800 l/min
Flow rate measurement
with P1 = 8, P2 = 6 and pressure drop Δp = 1 bar
Housing
Zinc die casting
Inlet pressure (metal container)
max. 20 bar
Inlet pressure (plastic container)
max. 16 bar
Inlet pressure max.
16 bar
Input pressure
max. 16 (plastic containers) / max. 20 (metal containers) bar
Medium temperature
max. +60 °C
Medium temperature max.
60 °C
Medium temperature min.
-10 °C
Pressure gauge display max.
16 bar
Pressure gauge display min.
0 bar
Screw thread
G 1/2 ″
Screw thread mm
19,17
Sealing material
NBR
Series
multifix
Spring cap
POM brass
Structure
2-piece.
Temperature range
max. +60 °C
Width
134,8 mm
b
246,3 mm
c
99,0 mm
d
147,3 mm
