Description

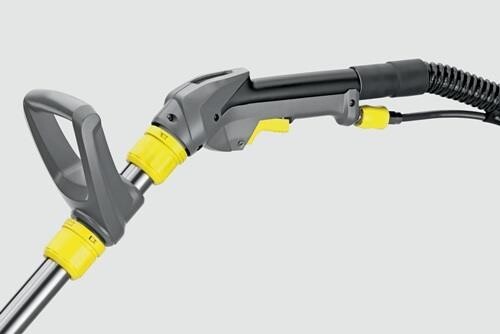

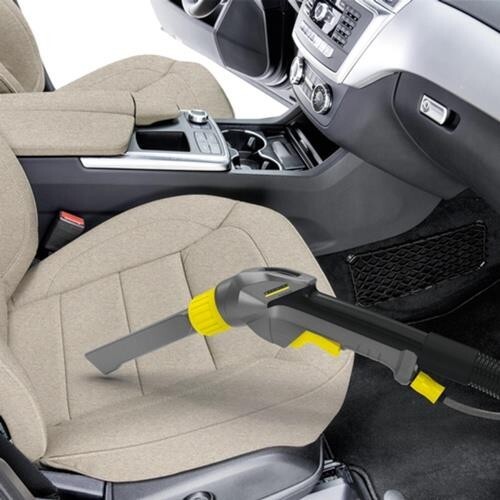

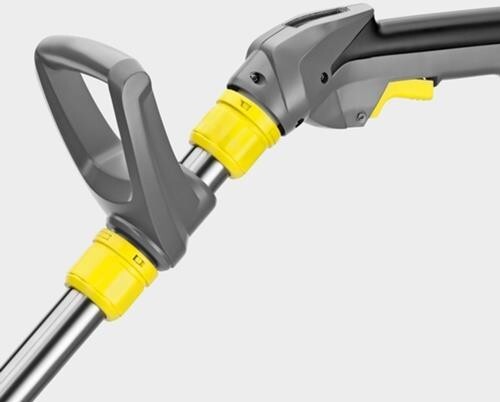

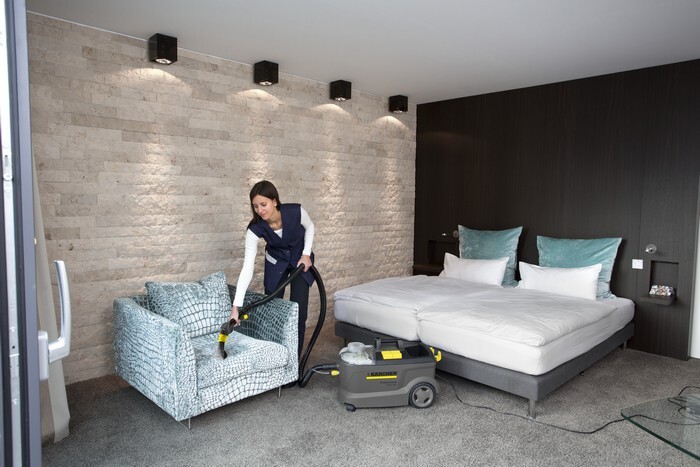

Puzzi 10/1 with upholstery nozzle and floor nozzle is suitable for the hygienic and effective cleaning of smaller to medium-sized areas. With 1 bar spray pressure the spray extraction machine ensures gentle fibre-deep cleaning of textile areas and delivers impressive results particularly for upholstery cleaning and carpet cleaning. Thanks to the narrow floor nozzle, the machine is also ideal for use in tight, confined spaces. And with the flexible suction lip heavily-furnished areas can also be cleaned without any problem. The spray extraction machine is equipped with an integrated cable hook and a fixing for handle with trigger and suction tube.

Attributes
Air volume
74 l/s
Behältervolumen
10 l
Breite
322 mm
Colour
anthracite
Current type
220 240 / 50 60 V / Hz
Dimension (L x W x H)
709 x 323 x 439 mm
Flächenleistung max.
20-25 m²/h
Fresh/waste water tank
10 / 9 l
Gewicht
10,5 kg
Höhe
438 mm
Length (battery)
709 mm
Max. surface performance
20 – 25 m²/h
Power turbine
1250 W
Pump output
40 W
Spray quantity
1 l/min
Steckertyp
F
Unterdruck
254 / 25,4 mbar / kPa bar
Vacuum
254 / 25.4 mbar / kPa
Weight including packaging
13.5 kg
Weight without accessories
10.5 kg
spray pressure
1 bar
