SKF

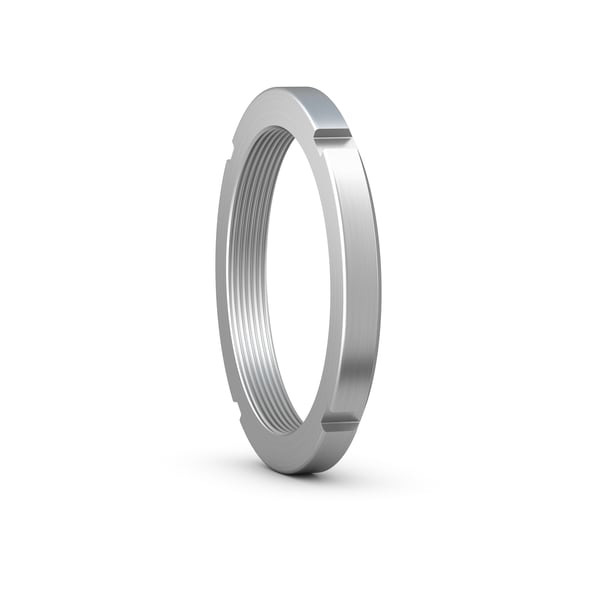

Shaft nut

HM 52 T with trapezoidal thread, SKF
Item-no.: 1309869Supplier number: HM 52 Tcustoms tariff number: 73181660EAN: 7316577010650

Quantity: ​​ 1 Piece ​ = ​ 1 PackagingPackable
SKF-Logo
Short-term Sourcing

Description
HM .. T lock nuts are used to locate bearings onto a shaft and as dismounting nut for withdrawal sleeves. They have metric trapezoidal threads and four equally spaced slots located around their circumference to accommodate an impact spanner. They should be locked by a lock washer to prevent unintentional loosening. HM .. T lock nuts can be reused, provided they are not damaged.
Attributes
Borehole diameter
256 mm
Clamping piece
Locking plate
Outer diameter
330 mm
Width
36 mm
