Hazet

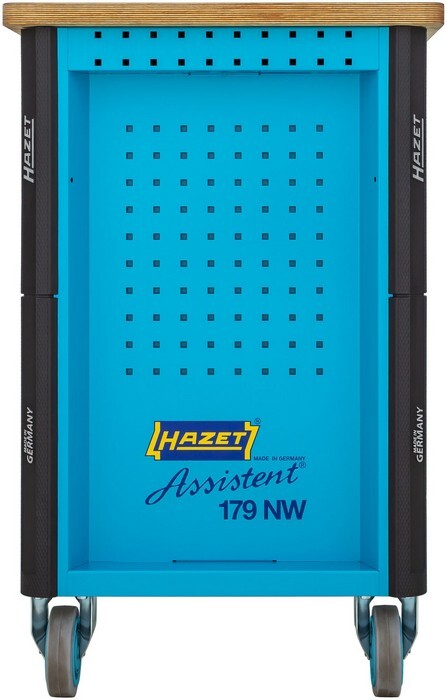

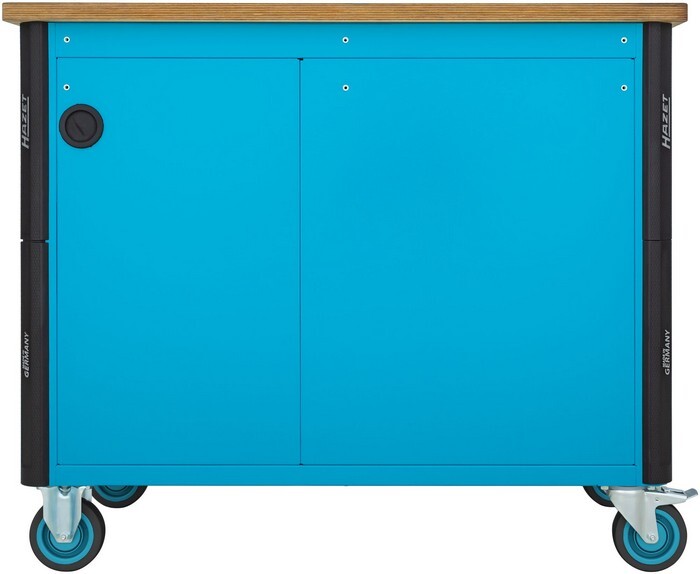

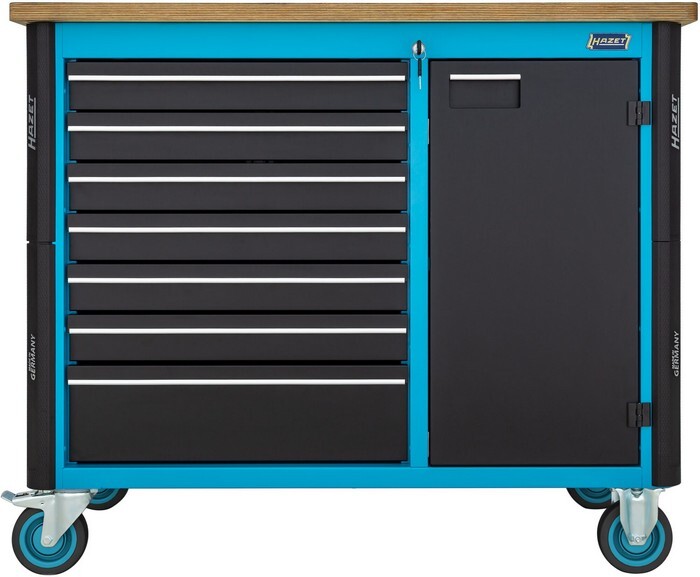

Mobile workbench with assortment

1150x600x964 mm 7 drawers blue 230 pcs. Hazet 179NW-7/230
Item-no.: 1417079Supplier number: 179NW-7/230customs tariff number: 94032080EAN: 4000896219605

Quantity: ​​ 1 PiecePackable

Short-term Sourcing

Description
· More storage space than preceding model · 6 flat drawers, loading capacity 25 kg, 81 mm high - 1 high heavy-duty drawer, loading capacity 40 kg, 166 mm high · Complete with 230-piece tool assortment in Safety-Insert-System soft foam insert · 30 mm wood multiplex birch work surface, oiled, replaceable · Including nine-fold adjustable intermediary tray and fixed mounted door · Cable duct on rear panel allows battery devices to be charged when the door is closed, for example · Complete welded construction of the entire body for tough daily workshop use · Additional square perforation for tool holder, e.g. HAZET 112-230 · Optimised, yielding edge protection on all four corners with real impact protection thanks to internal damping concept · Flexible vice assembly (front, right, left) e.g. HAZET 2175N according to drilling template specification · Chassis:· Large wheels with high loading capacity (Ø 125 mm) with precision ball-bearing and dual ball race in the swivel bearing, easy manoeuvrability even under high dynamic load · 2 swivel castors with double stop function: fixed castors prevent inadvertent rolling of the trolley, - fixed swivel bearings prevent the castors from swivelling, - e.g. on inclined surfaces · Protective ring prevents dirt and threads from getting in · Elastic castors enable smooth movement · Locking concept:· Mutual drawer locking for minimum tilting risk · Lock located in the centre (central locking and cylinder lock) closes the door and drawers at the same time · Only one key for locking the door and drawers at the same time (Included in delivery: 2 keys) · 180° rotation, prevents the key from breaking off · 100% sliding-out with ball-bearing telescopic rails – self-closing · Lockable storage compartment with 2 storage surfaces · 2 storage spaces in the storage compartment, top: 15 kg / bottom: 35 kg · Total loading capacity (dynamic): 750 kg · Loading capacity (static): 1000 kg · Worktop: Wood multiplex birch, replaceable · Colour: HAZET blue · Tool trolley Made in Germany · Dimensions / length: 1150 mm x 600 mm x 964 mm · Net weight: 120 kg · Drawers, flat: 6x 81x522x398 mm · Drawers, high: 1x 166x522x398 mm · (Drawer) size for plastic drawer insert: 3/3+ · Worktop: Wood multiplex birch, replaceable · Number of fixed castors: 2 (∅ 125 mm) · Number of swivel castors: 2 (∅ 125 mm) · Number of tools: 230.
Attributes
(Schubladen)größe für Ordnungssystem
3/3+
Colour
HAZET blue
Content
230-piece
Dimensions
1150 mm x 600 mm x 964 mm
Drawer depth
398 mm
Drawer design
Central locking with cylinder lock with 2 keys
Drawer dimension
522 x 398
Drawer height (flat)
81 mm
Drawer height (high)
166 mm
Drawer lock
Mutual pull-out stop for minimised risk of tipping
Drawer lock
Central locking with cylinder lock
Drawer pull-out %
100 %
Drawer runner
With ball-bearing telescopic runners
Drawer width
522 mm
Drawers total
7
Drawers, flat
6 x 81 x 522 x 398 mm
Drawers, high
1 x 166 x 522 x 398 mm
Exterior width
1150 mm
External height
964 mm
Fixed casters diameter
125 mm
Height
964 mm
Inside packaging
Safety insert system, 2-component soft foam insert
Length (battery)
1150 mm
Length x width x height
1150 mm x 600 mm x 964 mm
Load capacity per drawer
25 kg
Load capacity static
1000 kg
Material
Sheet steel
Net weight (kg)
120 kg
Number of Fixed castors
2
Number of castors with brake
2
Number of drawers
7
Number of high drawers
1
Number of low drawers
6
Number of swivel castors
2
Number of tools
230
Outside depth
600 mm
Series
auya_179NW set
Total load capacity (static)
1000 kg
Total load-bearing capacity (dynamic)
750 kg
Width
600 mm
Work surface
Wood multiplex birch, interchangeable
swivel castors diameter
125 mm
