Description

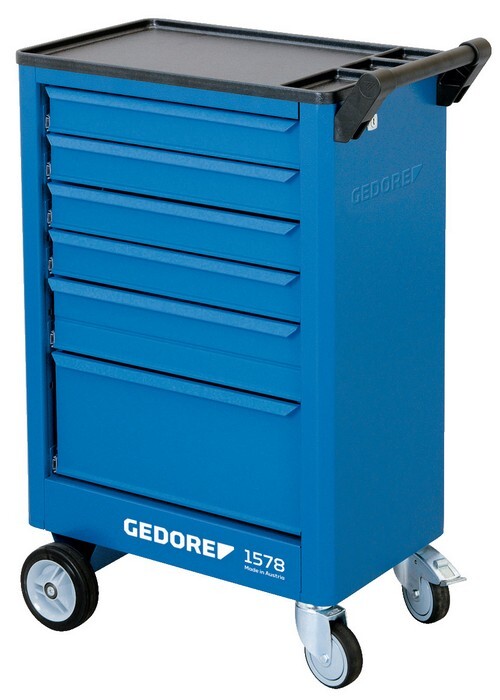

Body: Dimensions: H 930 x W 605 x D 375 mm, Working platform in ABS, with 3 compartments for small parts, Manoeuvrable and easy to control thanks to the driving and steering handle, Safety through heel protection for persons, Sheet steel, corrosion-resistant and scratch-resistant powder-coated, GEDORE blue, Drawers: Central locking with cylinder lock, 4 wide drawers (W 480 x D 325 x H 75 mm), 1 wide drawer (W 480 x D 325 x H 120 mm), 1 wide drawer (W 480 x D 325 x H 210 mm), All drawers extendable on both sides, Can be individually equipped with lengthwise and crosswise dividers (can be ordered individually), Load capacity per drawer 20 kg, Sheet steel, corrosion resistant and scratch-proof powder-coated, GEDORE blue, GEDORE chassis: Total load capacity 200 kg, 2 high-performance wheels on roller bearings (fixed castors Ø 140 mm), 2 ball-bearing GEDORE smooth-running wheels (swivel castors Ø 100 mm), one with total brake, The GEDORE trapezoidal axle construction secures smooth running, manoeuvrability and track-keeping also in case of maximum loads, Accessories: 6 longitudinal (LT) and 2 transverse dividers (QT) made of galvanised sheet steel, Options: Can be equipped with GEDORE tool modules (1500 ES/1500 CT), Special colours and designs available on request, Delivery without tools and accessories







Attributes
Colour
GEDORE blue, RAL 5017
Dimension (L x W x H)
930 x 605 x 375 mm
Fixed castor diameter (2x)
140
Load capacity per drawer
20 kg
Material
Sheet steel
Net weight
43000 g
Nominal height
930 mm
Nominal length
490 mm
Nominal width
625 mm
Number of cross dividers
2
Number of drawers
6
Number of length dividers
6
Number of wheels
4
RAL colour
blue
Static load capacity
200 kg
Surface
Powder-coated
Swivel castor diameter with brakes (2x)
100
Total height
930 mm
Total length
375 mm
Total width
605 mm
Working height
930
abschließbar
Ja
