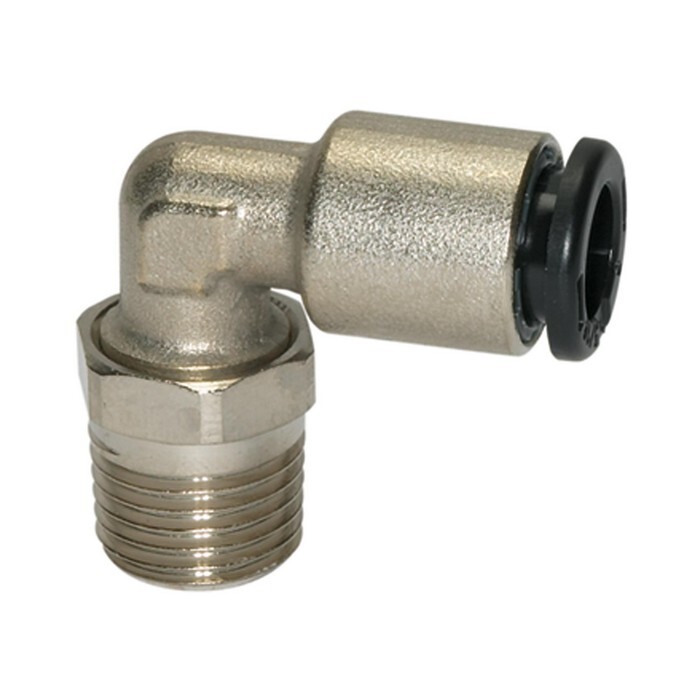

Winkel Einschraubverschraubung
AG 1/8"R kon., SD8 click-clock, Messing vernickelt, drehbarItem-no.: 1114700Supplier number: 7754.018-8EAN: 4047322208383
Quantity:
1 PiecePackable
Item available in 11 variants:
Price and stock visible after login
Description
Push-in L-fitting »click-clock«, rotating, R 1/8 o., for hose exterior Ø 8, Working pressure -0.99 to 16 bar, nickel-plated brass . The advanced version of our highly successful push-in fittings series manufactured in nickel-plated brass. Advantages of this new, optimised series:
- Much easier connection and disconnection of the hose, even with repeated mounting
- Can also be used for non-calibrated hoses
- Suitable for vacuum operation
Attributes
Arbeitsdruck min.
-0,99 bar
Clamping ring
Stainless steel
Dichtmaterial
NBR
Empfohlener Schlauch
PA, PU
For outer hose Ø
8 mm
L1
25,4 mm
L2
19,8 mm
Loosening ring
Hostaform
Material
Nickel-plated brass
Medium
Druckluft
Operating temperature max.
80 °C
Operating temperature min.
-20 °C
Product range
click-clock
Riegler article number
108615
SW
12 mm
Screw thread
R 1/8
Serie
click-clock
Working pressure max.
16 bar
